skf_3311a_2ztn9c3vt113
SKF

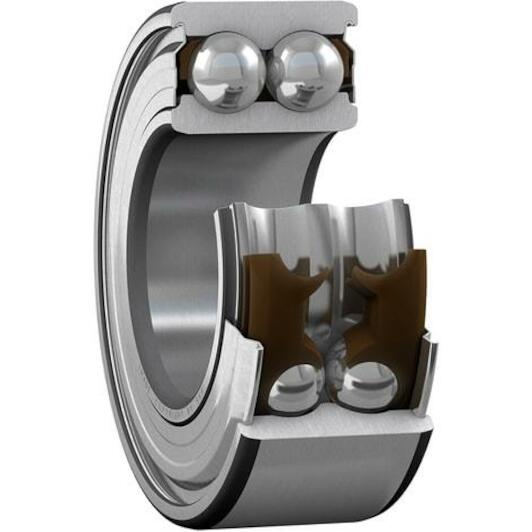

SKF 3311 A-2ZTN9/C3VT113 double-row angular contact ball bearing with protective plates on both sides 55 mm

Recommended Retail Price €491.14
242.95 tax incl.
€200.79 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 55 mm
  • Axial clearance: C3
  • Outer diameter: 120 mm
  • Number of rows: 2
  • Width: 49,2 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572864654
  • Supplier number: SKF 3311 A-2ZTN9/C3VT113
Inner diameter
55 mm
Axial clearance
C3
Outer diameter
120 mm
Number of rows
2
Width
49,2 mm
Material, bearing
Bearing steel
Cage
Non-metallic
Sealing type
Non-contact
Lubricant
Grease
Sealing
Shield on both sides
Reference speed
6000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
81.5
Contact type
Normal contact (two-point contact)
Ring type
One-piece inner and outer rings
Locating feature, bearing outer ring
None
Skf performance class
SKF Explorer
Contact angle
30
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Axial internal clearance
C3
Limiting speed
5300
Bore diameter
55
Basic dynamic load rating
112
Coating
Without
Outside diameter
120
Universal matching bearing
No
