What are the dimensions of this SKF 33111/Q tapered roller bearing?

This bearing has a 55 mm inner diameter, a 95 mm outer diameter, and a total width of 30 mm.

What types of loads can this bearing accommodate?

It is designed for combined loads, supporting high radial loads and axial loads in one direction.

Are the inner and outer rings separable?

Yes, the inner ring with rollers and cage can be mounted separately from the outer ring.

What is the contact angle of this bearing?

This tapered roller bearing has a contact angle of 14°.

Does this bearing come pre-lubricated?

No, this open bearing is supplied without pre-applied lubricant, allowing you to add the appropriate grease or oil.

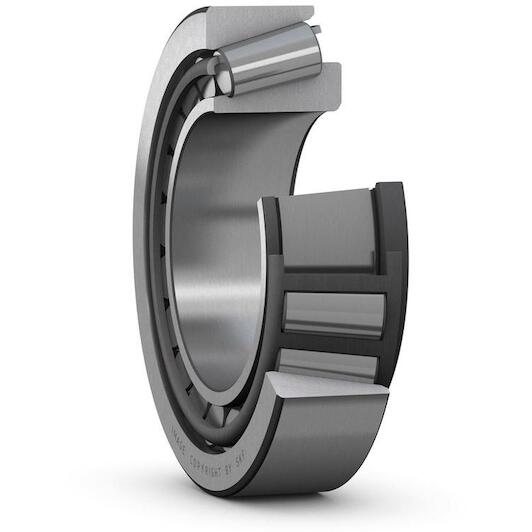

SKF 33111/Q single-row tapered roller bearing 55 x 95 x 30 mm with contact angle 14°

Supplier number: SKF 33111/Q | EAN 7316577006349

Recommended Retail Price €191.45

94.60 tax incl.

€78.18 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 13/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Durable load performance by Skf

Practical benefits

High combined load capacity: You accommodate heavy simultaneous radial and axial loads in one direction thanks to the 14° contact angle.
Simple mounting and maintenance: The separable inner and outer rings allow you to mount and inspect components independently, streamlining machine assembly.
Low friction smooth running: The optimized roller design minimizes heat build-up and wear, ensuring you maintain consistent operational efficiency in demanding applications.

In a nutshell

The right choise for

Keep your heavy-duty machinery running smoothly with the Skf 33111/Q single row tapered roller bearing. Designed with dimensions of 55 x 95 x 30 mm, this precision bearing reliably accommodates heavy simultaneous radial and axial loads in one direction. Its 14° contact angle and low-friction design minimize heat generation and wear, ensuring smooth and stable rotation under demanding operating conditions. Because the inner ring with cage and the outer ring mount separately, installation and maintenance in gearboxes, drivetrains, or axles are fast and straightforward. Choose this bearing to maintain precise shaft alignment and maximize machine reliability.

Product information FAQ

€94.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 30 mm
Number of rows: 1
Outer diameter: 95 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

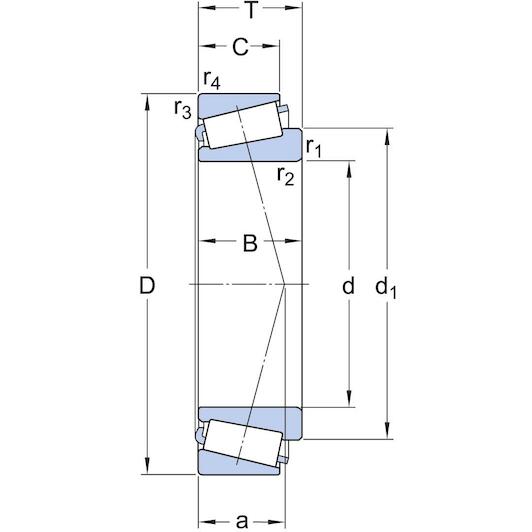

All Features

Inner diameter: 55 mm
Width: 30 mm
Number of rows: 1
Outer diameter: 95 mm
Width, total: 30 mm
Cage: Sheet metal
Width, outer ring: 23 mm
Lubricant: None
Reference speed: 5,000 r/min
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 156 kN
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Arrangement of contact angle (double-row bearing): Not applicable
Contact angle: 14.000000000035 °
Width, inner ring: 30 mm
Limiting speed: 6,700 r/min
Bore diameter: 55 mm
Basic dynamic load rating: 110 kN
Coating: Without
Outer diameter: 95 mm
Bore type: Cylindrical

Brand SKF
01110181
EAN 7316577006349
Supplier number SKF 33111/Q

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 33111/Q tapered roller bearing?: This bearing has a 55 mm inner diameter, a 95 mm outer diameter, and a total width of 30 mm.
What types of loads can this bearing accommodate?: It is designed for combined loads, supporting high radial loads and axial loads in one direction.
Are the inner and outer rings separable?: Yes, the inner ring with rollers and cage can be mounted separately from the outer ring.
What is the contact angle of this bearing?: This tapered roller bearing has a contact angle of 14°.
Does this bearing come pre-lubricated?: No, this open bearing is supplied without pre-applied lubricant, allowing you to add the appropriate grease or oil.
