What are the dimensions of this bearing?

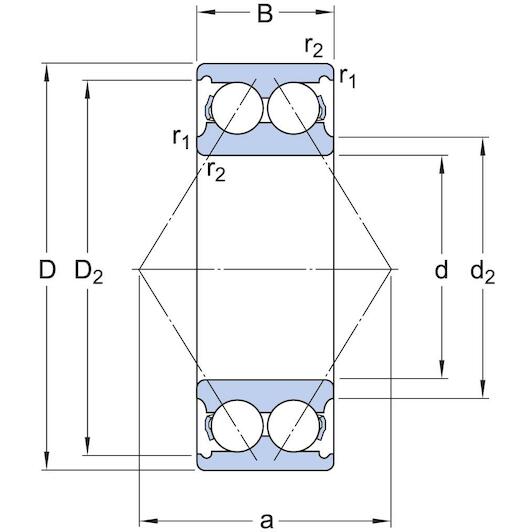

This double-row bearing has a bore diameter of 60 mm, an outer diameter of 130 mm, and a width of 54 mm.

What loads can the SKF 3312 A/C3 accommodate?

With a 30° contact angle, it accommodates heavy radial loads and axial loads in both directions simultaneously.

What does the C3 clearance designation mean?

C3 designates greater internal clearance than standard, suited for thermal expansion or high operating speeds.

Is this angular contact ball bearing sealed?

No, this is an open bearing without seals and requires external lubrication and dirt protection.

What material is the bearing cage made of?

This bearing is equipped with a sheet metal cage.

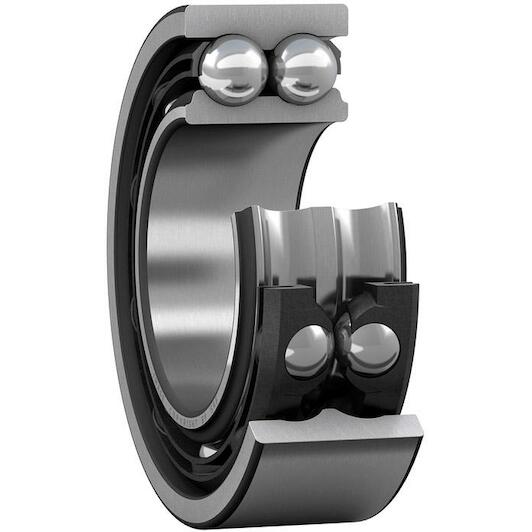

SKF 3312 A/C3 double-row angular contact ball bearing 60 x 130 x 54 mm with 30° contact angle

Supplier number: SKF 3312 A/C3 | EAN 7316570591552

Recommended Retail Price €731.11

361.80 tax incl.

€299.01 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 20/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Heavy load support with the Skf 3312 A/C3

Practical benefits

High combined load capacity: You effortlessly accommodate high radial forces and two-directional axial loads within demanding machinery.
Space-saving rigid design: You gain the stiffness of a paired bearing set within a much narrower axial width.
Reliable high-speed performance: Thanks to the C3 internal clearance, you maintain smooth operation even during higher running temperatures.

In a nutshell

The right choise for

With the Skf 3312 A/C3 double-row angular contact ball bearing, you provide rigid, reliable shaft support for industrial machinery, pumps, gearboxes, and industrial fans. Featuring a 30° contact angle, it accommodates heavy radial loads and bidirectional axial forces simultaneously, eliminating the need for a paired single-row bearing setup. Its compact 60 x 130 x 54 mm dimensions save valuable axial space along the shaft. Meanwhile, the larger C3 internal clearance smoothly handles thermal shaft expansion during high-speed operation. This ensures your rotating equipment runs reliably, efficiently, and with maximum stability under demanding conditions.

Product information FAQ

€361.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 54 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (sheet)
Outer diameter: 130 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 54 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (sheet)
Outer diameter: 130 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 95
Lubricant: None
Relubrication feature: Without
Reference speed: 5600
Skf performance class: SKF Explorer
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Sheet metal
Material, bearing: Bearing steel
Sealing: Without
Bore diameter: 60
Axial internal clearance: C3
Contact angle: 30
Limiting speed: 5000
Basic dynamic load rating: 127
Coating: Without
Outer diameter: 130
Universal matching bearing: No

Brand SKF
01050390
EAN 7316570591552
Supplier number SKF 3312 A/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: This double-row bearing has a bore diameter of 60 mm, an outer diameter of 130 mm, and a width of 54 mm.
What loads can the SKF 3312 A/C3 accommodate?: With a 30° contact angle, it accommodates heavy radial loads and axial loads in both directions simultaneously.
What does the C3 clearance designation mean?: C3 designates greater internal clearance than standard, suited for thermal expansion or high operating speeds.
Is this angular contact ball bearing sealed?: No, this is an open bearing without seals and requires external lubrication and dirt protection.
What material is the bearing cage made of?: This bearing is equipped with a sheet metal cage.
