Product description:

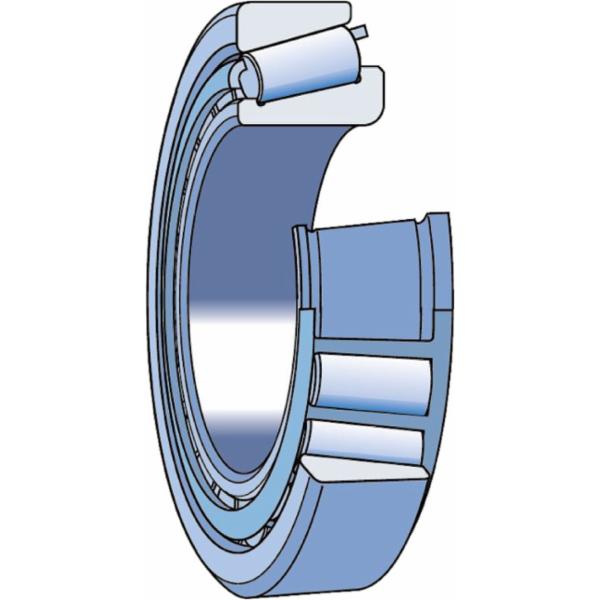

- Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
- Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
- The axial load carrying capacity of bearings is largely paid for by the contact angle
- The larger this angle is, the higher the axial load carrying capacity is
- Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
-
Inner diameter: 50,813 mm
-
Width: 36,79 mm
-
Number of rows: 1
-
Outer diameter: 100 mm
Specifications / All features
-
Brand:
SKF
-
01380382
-
EAN:
7316570893151
-
Supplier number:
SKF 331305 A
- Inner diameter
- 50,813 mm
- Width
- 36,79 mm
- Number of rows
- 1
- Outer diameter
- 100 mm
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Cage
- Sheet metal
- Width, outer ring
- 27 mm
- Lubricant
- None
- Skf performance class
- SKF Explorer
- Reference speed
- 5,300 r/min
- Relubrication feature
- Without
- Matched arrangement
- No
- Basic static load rating
- 190 kN
- Bearing part
- Complete bearing
- Locating feature, bearing outer ring
- None
- Sealing
- Without
- Width, inner ring
- 35 mm
- Width, total
- 35 mm
- Contact angle
- 14.916666666704 °
- Limiting speed
- 6,300 r/min
- Bore diameter
- 50.813 mm
- Basic dynamic load rating
- 170 kN
- Coating
- Without
- Outside diameter
- 100 mm
- Bore type
- Cylindrical
