SKF

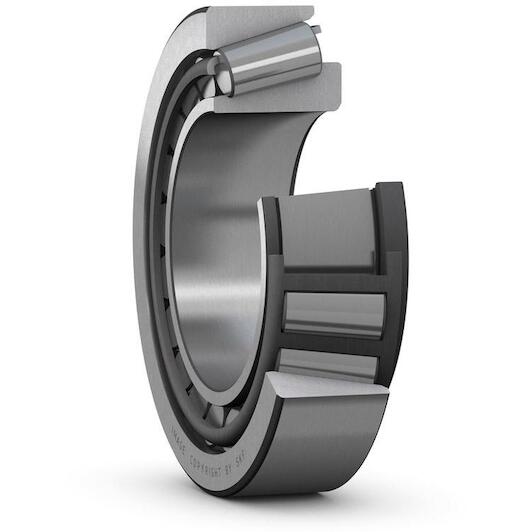

SKF 331474/Q single-row tapered roller bearing 60 x 100 x 30 mm with contact angle 14.8° - 331474

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 60 mm
  • Width: 31,46 mm
  • Number of rows: 1
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571159522
  • Supplier number: SKF 331474
Inner diameter
60 mm
Width
31,46 mm
Number of rows
1
Outer diameter
100 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Cage
Sheet metal
Width, outer ring
23 mm
Lubricant
None
Skf performance class
SKF Explorer
Reference speed
5,300 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
170 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Contact angle
14.83333333337 °
Width, total
30 mm
Width, inner ring
30 mm
Limiting speed
6,300 r/min
Bore diameter
60 mm
Basic dynamic load rating
144 kN
Coating
Without
Outside diameter
100 mm
Bore type
Cylindrical
