SKF

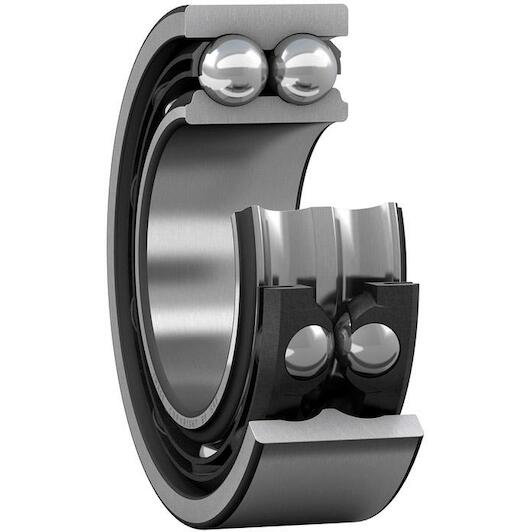

SKF 3319 A/C3 double-row angular contact ball bearing 95 x 200 x 77.8 mm with contact angle 30°

Recommended Retail Price €5,279.75
2,613.95 tax incl.
€2,160.29 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 95 mm
  • Width: 77,8 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 200 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570036435
  • Supplier number: SKF 3319 A/C3
Inner diameter
95 mm
Width
77,8 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
200 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
216
Skf performance class
SKF Explorer
Relubrication feature
Without
Reference speed
3600
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Lubricant
None
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Without
Limiting speed
3200
Axial internal clearance
C3
Contact angle
30
Bore diameter
95
Number of rows
2
Basic dynamic load rating
240
Coating
Without
Outside diameter
200
Universal matching bearing
No
