What are the dimensions of this track roller?

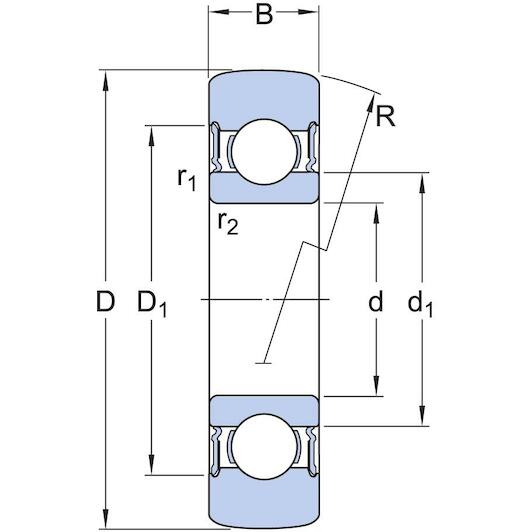

The SKF 361201 R has an inside diameter of 12 mm, an outside diameter of 35 mm, and a width of 10 mm.

What is the benefit of the crowned outer ring profile?

The crowned surface distributes loads evenly and protects against edge stresses caused by misalignment.

What applications is the SKF 361201 R designed for?

It is designed for cam drives, conveyor systems, and linear guide tracks.

Does this yoke-type roller require lubrication before installation?

No, it comes factory-greased, sealed, and ready to mount.

How is this cam roller protected against contamination?

It features integral contact seals on both sides to retain lubricant and keep contaminants out.

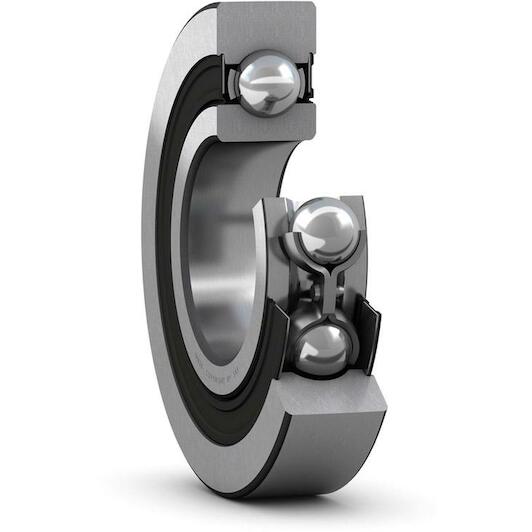

SKF 361201 R Single-row cam roller (Yoke-type idler) 12 x 35 x 10 mm

Supplier number: SKF 361201 R | EAN 7316570600902

Recommended Retail Price €56.58

27.95 tax incl.

€23.10 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth motion with Skf cam roller

Practical benefits

Even load distribution on tracks: The crowned outer ring prevents corner stresses so you achieve smooth operation even under slight misalignment.
Effective protection against contamination: Dual seals retain internal grease while preventing dirt ingress, giving you extended operational bearing life.
Ready for immediate installation: Supplied pre-greased and sealed, you can mount the yoke roller directly without additional maintenance steps.

In a nutshell

The right choise for

With the Skf 361201 r cam roller, you ensure reliable, smooth guidance in cam drives, conveyor systems, and linear guide tracks. The crowned outer surface evenly distributes track loads, compensating for shaft deflection and minor angular misalignment without creating harmful corner stresses. Its increased C3 radial internal clearance effortlessly accommodates dynamic loads and thermal expansion. Factory pre-greased and equipped with dual seals to keep contaminants out and lubricant in, this single-row yoke-type roller is ready for direct installation and delivers dependable, long-term performance.

Product information FAQ

€27.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Not applicable
Radial clearance: C3
Axial clearance: Not applicable
Outer ring profile: Spherical
Outer diameter: 35 mm

Product description

Single row cam rollers, with seals on both sides, are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single-row deep groove ball bearing and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and greased for the life of the bearing, and are ready-to-mount. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Run on all types of tracks, for use in cam drives, conveyor systems, etc.Crowned outer running surface
Greased, sealed and ready to mount
Integral sealing prolongs bearing service life
Typical benefits of single row deep groove ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Not applicable
Radial clearance: C3
Axial clearance: Not applicable
Outer ring profile: Spherical
Outer diameter: 35 mm
Basic static load rating: 2.6
Bearing part: Complete track roller
Tolerance class: Normal (except crowned running surface)
Radial internal clearance: C3
Material, bearing: Bearing steel
Relubrication feature: Without
Lubricant: Grease
Sealing type: Contact
Cage: With
Sealing: Seal on both sides
Functional outside diameter: 35
Axial guidance of outer ring: Yes
Axial internal clearance: Not applicable
Limiting speed: 11000
Bore diameter: 12
Basic dynamic load rating: 6.24
Coating: Without
Rolling elements: Balls

Brand SKF
01210011
EAN 7316570600902
Supplier number SKF 361201 R

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this track roller?: The SKF 361201 R has an inside diameter of 12 mm, an outside diameter of 35 mm, and a width of 10 mm.
What is the benefit of the crowned outer ring profile?: The crowned surface distributes loads evenly and protects against edge stresses caused by misalignment.
What applications is the SKF 361201 R designed for?: It is designed for cam drives, conveyor systems, and linear guide tracks.
Does this yoke-type roller require lubrication before installation?: No, it comes factory-greased, sealed, and ready to mount.
How is this cam roller protected against contamination?: It features integral contact seals on both sides to retain lubricant and keep contaminants out.
