What are the dimensions of this track roller?

The SKF 361204 R has an inside diameter of 20 mm, an outside diameter of 52 mm, and a width of 14 mm.

What is the purpose of the crowned outer ring?

The crowned running surface accommodates minor misalignments and prevents heavy edge stressing.

Is this roller protected against contamination?

Yes, it features contact seals on both sides to keep contaminants out and grease inside.

Does this cam roller require greasing before mounting?

No, it is supplied pre-lubricated and sealed for life, ready for immediate installation.

What radial internal clearance does this bearing have?

This yoke-type track roller has a C3 radial internal clearance.

SKF 361204 R Single-row cam roller (Yoke-type idler) 20 x 52 x 14 mm

Supplier number: SKF 361204 R | EAN 7316577650214

Recommended Retail Price €57.68

28.40 tax incl.

€23.47 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth tracking with Skf roller

Practical benefits

Reduced edge stress contact: The crowned outer running surface allows you to compensate for tilting and misalignment across diverse track profiles.
Dual sided protective seals: You gain extended operational life as built-in contact seals keep grease inside while blocking dirt and contaminants.
Ready for fast installation: Factory lubricated and sealed, you can mount this 20 x 52 x 14 mm track component directly without pre-service steps.

In a nutshell

The right choise for

With the Skf 361204 r cam roller, you achieve smooth and reliable tracking across conveyor systems and cam drive mechanisms. Designed with a crowned outer ring, this single-row yoke-type track roller easily accommodates shaft deflection and angular misalignment, protecting your machinery from excessive edge stress. Its built-in dual contact seals keep grease contained while effectively blocking dirt and contaminants, ensuring a longer service life in challenging environments. Measuring 20 x 52 x 14 mm and featuring C3 radial internal clearance, this pre-lubricated bearing is ready for immediate mounting.

Product information FAQ

€28.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Not applicable
Radial clearance: C3
Axial clearance: Not applicable
Outer ring profile: Spherical
Outer diameter: 52 mm

Product description

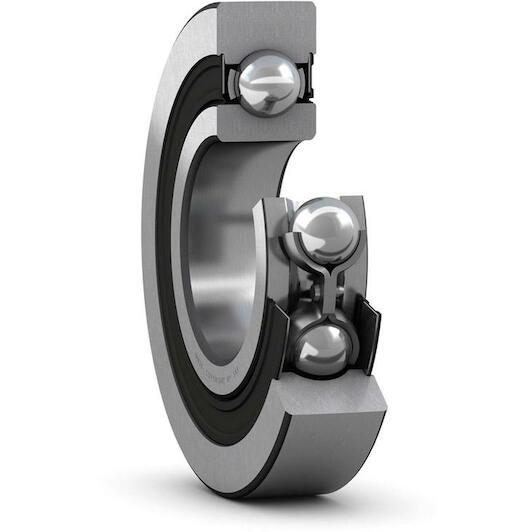

Single row cam rollers, with seals on both sides, are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single-row deep groove ball bearing and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and greased for the life of the bearing, and are ready-to-mount. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Run on all types of tracks, for use in cam drives, conveyor systems, etc.Crowned outer running surface
Greased, sealed and ready to mount
Integral sealing prolongs bearing service life
Typical benefits of single row deep groove ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Not applicable
Radial clearance: C3
Axial clearance: Not applicable
Outer ring profile: Spherical
Outer diameter: 52 mm
Basic static load rating: 5.5
Bearing part: Complete track roller
Tolerance class: Normal (except crowned running surface)
Radial internal clearance: C3
Material, bearing: Bearing steel
Relubrication feature: Without
Lubricant: Grease
Sealing type: Contact
Cage: With
Sealing: Seal on both sides
Functional outside diameter: 52
Axial guidance of outer ring: Yes
Axial internal clearance: Not applicable
Limiting speed: 7000
Bore diameter: 20
Basic dynamic load rating: 11.4
Coating: Without
Rolling elements: Balls

Brand SKF
01210019
EAN 7316577650214
Supplier number SKF 361204 R

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this track roller?: The SKF 361204 R has an inside diameter of 20 mm, an outside diameter of 52 mm, and a width of 14 mm.
What is the purpose of the crowned outer ring?: The crowned running surface accommodates minor misalignments and prevents heavy edge stressing.
Is this roller protected against contamination?: Yes, it features contact seals on both sides to keep contaminants out and grease inside.
Does this cam roller require greasing before mounting?: No, it is supplied pre-lubricated and sealed for life, ready for immediate installation.
What radial internal clearance does this bearing have?: This yoke-type track roller has a C3 radial internal clearance.
