SKF

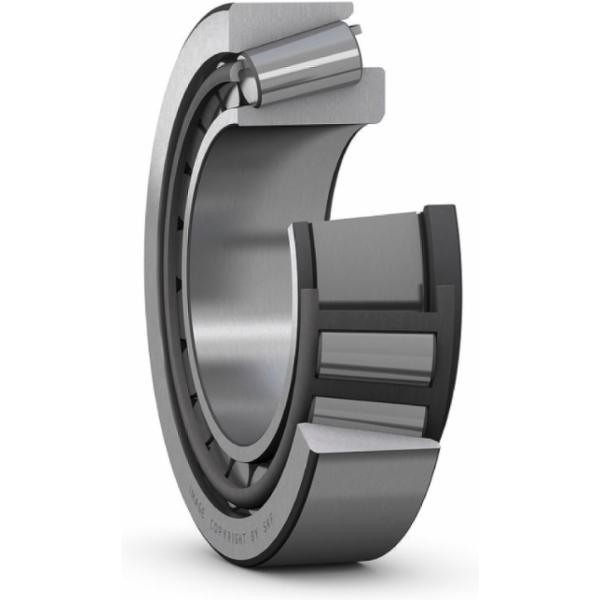

SKF 387 A/382 A/Q single-row tapered roller bearing 57.15 x 96.8 x 21.9 mm with contact angle 13.3° - 387 A/382 A

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 57,15 mm
  • Width: 21 mm
  • Number of rows: 1
  • Outer diameter: 96,838 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570003383
  • Supplier number: SKF 387 A/382 A
Inner diameter
57,15 mm
Width
21 mm
Number of rows
1
Outer diameter
96,838 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Cage
Sheet metal
Width, outer ring
15.875 mm
Lubricant
None
Skf performance class
SKF Explorer
Reference speed
5,600 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
102 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Width, inner ring
21.946 mm
Width, total
21.946 mm
Contact angle
13.283333333366 °
Limiting speed
6,700 r/min
Bore diameter
57.15 mm
Basic dynamic load rating
99.9 kN
Coating
Without
Outside diameter
96.838 mm
Bore type
Cylindrical
