What types of loads can this bearing accommodate?

This single-direction thrust ball bearing is designed exclusively for axial loads in one direction and must not receive radial loads.

Is the bearing separable for installation?

Yes, the shaft washer, housing washer, and ball and cage assembly can be mounted and dismounted separately.

Can this bearing compensate for misalignment?

No, this bearing features a flat seating surface and cannot accommodate angular misalignment between the shaft and housing.

How many rows of balls does this thrust bearing have?

The bearing features 1 row of balls.

SKF 51126 ball roller bearing single acting 130x170 mm

Supplier number: SKF 51126 | EAN 7316577006608

Recommended Retail Price €622.11

307.95 tax incl.

€254.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable support for axial loads

Practical benefits

Single direction thrust support: With the Skf 51126, you easily accommodate heavy axial loads in one direction to maintain stable rotation.
Effortless mounting and maintenance: Because of the separable component design, you can mount, dismount, and inspect individual rings quickly and efficiently.
Stable and smooth rotation: The durable cage keeps rolling elements perfectly positioned to ensure smooth operation and long service life.

In a nutshell

The right choise for

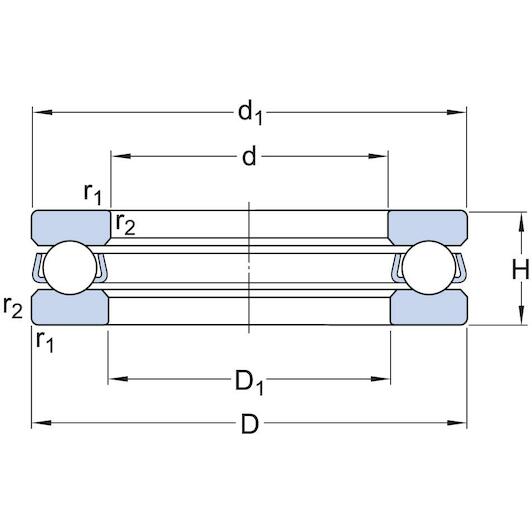

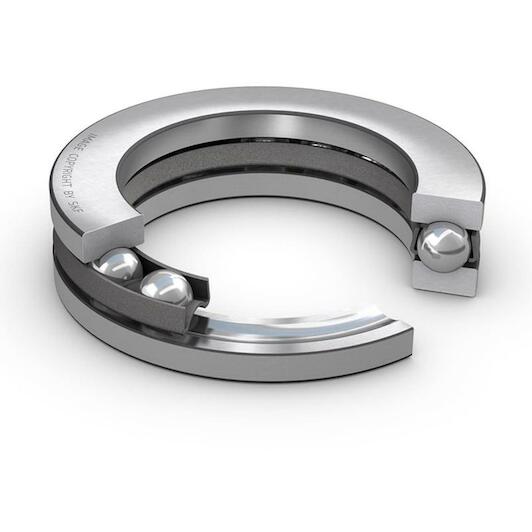

With the Skf 51126 single-direction thrust ball bearing, you reliably accommodate heavy axial loads in one direction. Designed with a 130 mm bore diameter, a 170 mm outer diameter, and a height of 30 mm, this bearing is ideal for vertical shafts and industrial machinery assemblies facing pure axial forces. Its separable construction lets you mount, dismount, and inspect the shaft washer, housing washer, and single-row ball and cage assembly independently and with ease. The durable cage keeps the rolling elements precisely aligned, ensuring smooth rotational motion and lasting service life.

Product information FAQ

€307.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 130 mm
Width: 30 mm
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 170 mm

Product description

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Avantages

Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of shaft washers enable interference fit

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 130 mm
Width: 30 mm
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 170 mm
Bore diameter: 130
Cage: Sheet metal
Housing washer type: Flat
Reference speed: 1900
Basic static load rating: 440
Tolerance class: Normal
Limiting speed: 2600
Axial load capability: Single-direction
Coating: Without
Basic dynamic load rating: 119
Height: 30
Outer diameter: 170
Material, bearing: Bearing steel

Brand SKF
01130023
EAN 7316577006608
Supplier number SKF 51126

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 130 mm bore diameter, a 170 mm outer diameter, and a height of 30 mm.
What types of loads can this bearing accommodate?: This single-direction thrust ball bearing is designed exclusively for axial loads in one direction and must not receive radial loads.
Is the bearing separable for installation?: Yes, the shaft washer, housing washer, and ball and cage assembly can be mounted and dismounted separately.
Can this bearing compensate for misalignment?: No, this bearing features a flat seating surface and cannot accommodate angular misalignment between the shaft and housing.
How many rows of balls does this thrust bearing have?: The bearing features 1 row of balls.
