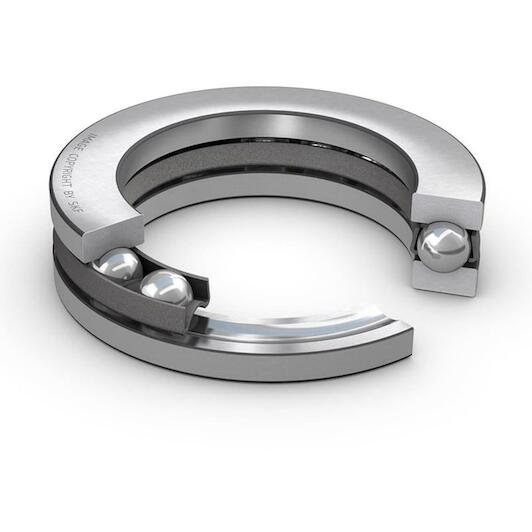

SKF 51228 ball roller bearing single acting 140x200 mm

Supplier number: SKF 51228 | EAN 7316577612113

Recommended Retail Price €1,552.19

768.40 tax incl.

€635.04 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable axial load support with 51228

Practical benefits

Single direction axial absorption: You accommodate high axial forces reliably in one direction thanks to precision-engineered raceways.
Quick and separable installation: The separable components allow you to mount and inspect the shaft washer, housing washer, and ball cage independently.
Smooth and durable rotation: A robust brass cage keeps balls uniformly spaced to ensure low friction and stable operation under load.

In a nutshell

The right choise for

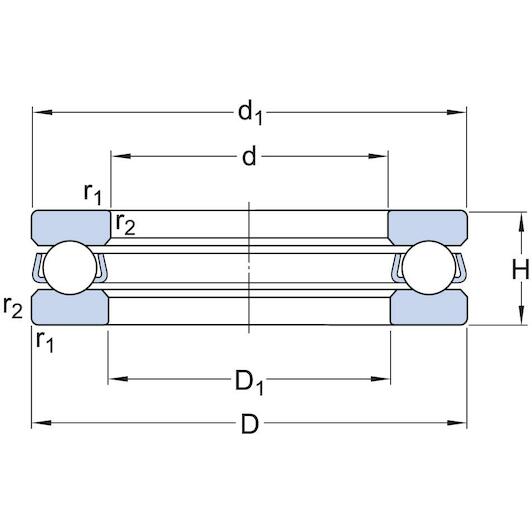

With the Skf 51228 single direction thrust ball bearing, you reliably accommodate heavy axial forces in one direction. Designed with a 140 mm bore diameter, 200 mm outside diameter, and 46 mm height, this bearing prevents axial displacement of rotating shafts in vertical setups, turntables, and heavy industrial machinery. The robust sheet brass cage keeps balls uniformly spaced to minimize friction and wear during continuous operation. Thanks to its separable design, you can easily mount and inspect the shaft washer, housing washer, and ball cage assembly independently, ensuring smooth installation and efficient maintenance.

Product information

€768.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 140 mm
Width: 46 mm
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 200 mm

Product description

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
