SKF

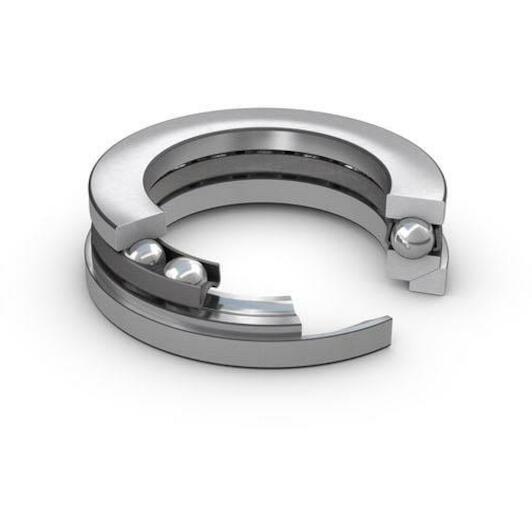

SKF 53206 ball roller bearing single acting 30x52 mm

Recommended Retail Price €140.53
69.40 tax incl.
€57.36 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

Avantages

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enables interference fit
  • Sphered housing washers can accommodate initial misalignment
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 17,8 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577007285
  • Supplier number: SKF 53206
Inner diameter
30 mm
Width
17,8 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
52 mm
Bore diameter
30
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
4500
Basic static load rating
51
Tolerance class
Normal
Limiting speed
6300
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
25.1
Height
17.8
Outside diameter
52
Radius of aligning surface
45
