SKF

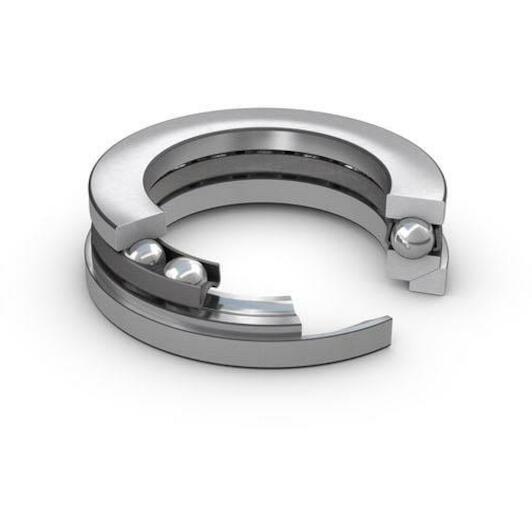

SKF 53320 ball roller bearing single acting 100x170 mm

Recommended Retail Price €1,756.73
869.60 tax incl.
€718.68 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

Avantages

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enables interference fit
  • Sphered housing washers can accommodate initial misalignment
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 59,2 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577121424
  • Supplier number: SKF 53320
Inner diameter
100 mm
Width
59,2 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
170 mm
Bore diameter
100 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
1,300 r/min
Basic static load rating
570 kN
Tolerance class
Normal
Limiting speed
1,800 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
225 kN
Thickness
59.2 mm
Outside diameter
170 mm
Radius of aligning surface
125 mm
