SKF

SKF 54310 double-sided roller bearing 40x95 mm

This article is not available

Product description:

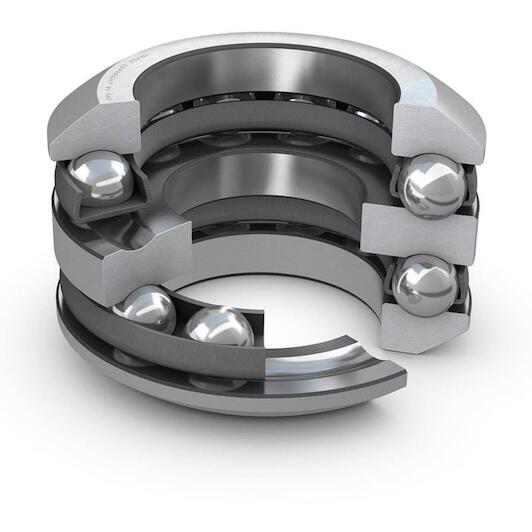

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 40 mm
  • Width: 64,7 mm
  • Number of rows: 2
  • Material (cage): Brass (sheet)
  • Outer diameter: 95 mm
Specifications / All features
  • Brand: SKF
  • EAN:
  • Supplier number: SKF 54310

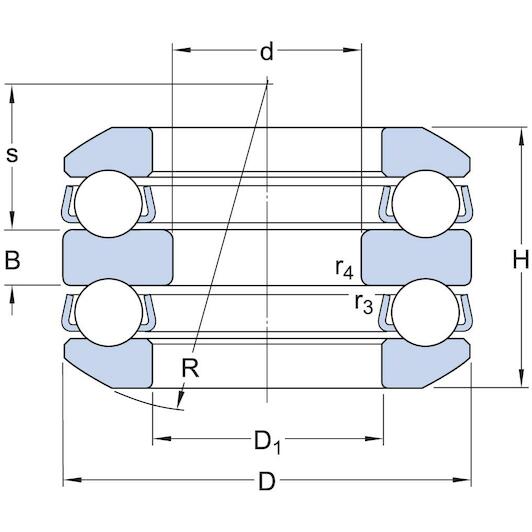

Inner diameter
40 mm
Width
64,7 mm
Number of rows
2
Material (cage)
Brass (sheet)
Outer diameter
95 mm
Bore diameter
40 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
1,700 r/min
Basic static load rating
170 kN
Tolerance class
Normal
Limiting speed
2,400 r/min
Axial load capability
Double-direction
Coating
Without
Basic dynamic load rating
81.9 kN
Thickness
64.7 mm
Outside diameter
95 mm
Radius of aligning surface
72 mm
