SKF

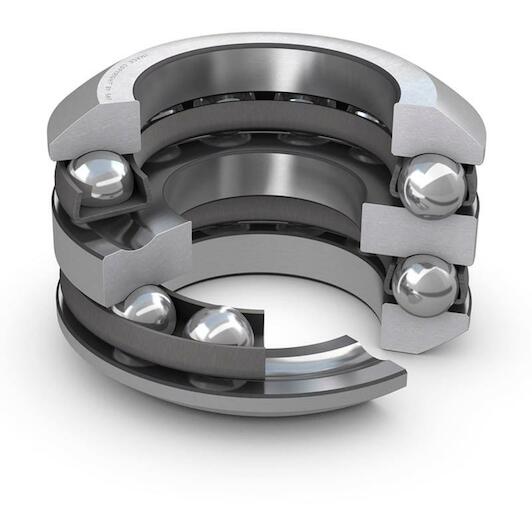

SKF 54410 ball roller bearing double-sided working 40x110 mm

This article is not available

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 40 mm
  • Width: 83,2 mm
  • Number of rows: 2
  • Material (cage): Brass (sheet)
  • Outer diameter: 110 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570222135
  • Supplier number: SKF 54410
Inner diameter
40 mm
Width
83,2 mm
Number of rows
2
Material (cage)
Brass (sheet)
Outer diameter
110 mm
Bore diameter
40 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
1,400 r/min
Basic static load rating
305 kN
Tolerance class
Normal
Limiting speed
1,900 r/min
Axial load capability
Double-direction
Coating
Without
Basic dynamic load rating
148 kN
Thickness
83.2 mm
Outside diameter
110 mm
Radius of aligning surface
90 mm
