What are the dimensions of this ball bearing?

The bearing has an inside diameter of 17 mm, an outside diameter of 35 mm, and a width of 10 mm.

What does the C3 designation mean?

C3 denotes a radial internal clearance greater than normal, suitable for higher speeds or thermal expansion.

What does the 2RSH designation indicate?

The 2RSH suffix indicates that the bearing has rubber contact seals on both sides to protect against dirt and moisture.

What types of loads can this bearing accommodate?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

Does this bearing require lubrication before installation?

No, it comes pre-greased from the factory and is lubricated for life.

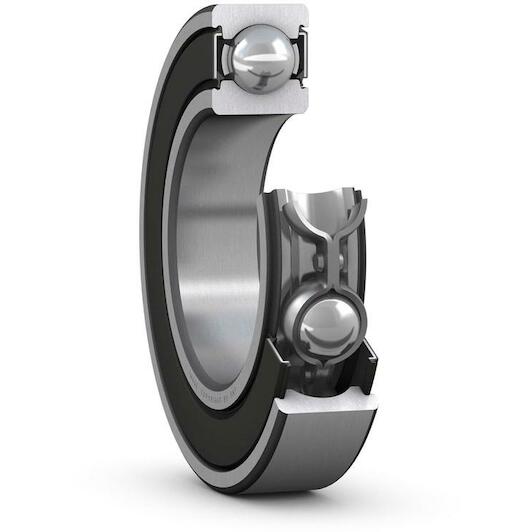

SKF 6003-2RSH/C3 single-row groove ball bearing cylindrical 17x35x10 mm

Supplier number: SKF 6003-2RSH/C3 | EAN 7316571815404

14.27 tax incl.

€11.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 14/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable rotation engineered by Skf

Practical benefits

Dual contact seal protection: Rubber seals on both sides retain lubricant while shielding your bearing from dirt, dust, and moisture ingress.
Increased internal radial clearance: The C3 clearance accommodates thermal expansion, allowing you to run smoothly at higher rotational speeds.
Versatile load handling capability: Designed to support both radial and axial forces, this single-row bearing ensures quiet and low-maintenance operation.

In a nutshell

The right choise for

With the Skf 6003-2RSH/C3 single row deep groove ball bearing, you ensure reliable, smooth rotation across demanding machinery and drive assemblies. Thanks to its increased C3 radial clearance, the bearing smoothly accommodates thermal expansion during high speeds in electric motors, pumps, and power tools. Double-sided 2RSH rubber contact seals retain the factory grease while keeping dust, dirt, and moisture out, eliminating the need for periodic relubrication. Measuring 17X35X10 mm, this steel bearing supports combined radial and axial loads in both directions. It minimizes friction and wear, keeping your rotating assemblies running quietly and maintenance-free.

Product information FAQ

€14.27

In stock - tax incl.

Key features according to our expert

Inner diameter: 17 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm

Product description

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 17 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 3.25
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 45000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Normal
Basic dynamic load rating: 6.37
Locating feature, bearing outer ring: None
Sealing: Seal on both sides
Limiting speed: 13000
Bore diameter: 17
Coating: Without
Outer diameter: 35

Brand SKF
01011188
EAN 7316571815404
Supplier number SKF 6003-2RSH/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The bearing has an inside diameter of 17 mm, an outside diameter of 35 mm, and a width of 10 mm.
What does the C3 designation mean?: C3 denotes a radial internal clearance greater than normal, suitable for higher speeds or thermal expansion.
What does the 2RSH designation indicate?: The 2RSH suffix indicates that the bearing has rubber contact seals on both sides to protect against dirt and moisture.
What types of loads can this bearing accommodate?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
Does this bearing require lubrication before installation?: No, it comes pre-greased from the factory and is lubricated for life.
