What are the dimensions of this ball bearing?

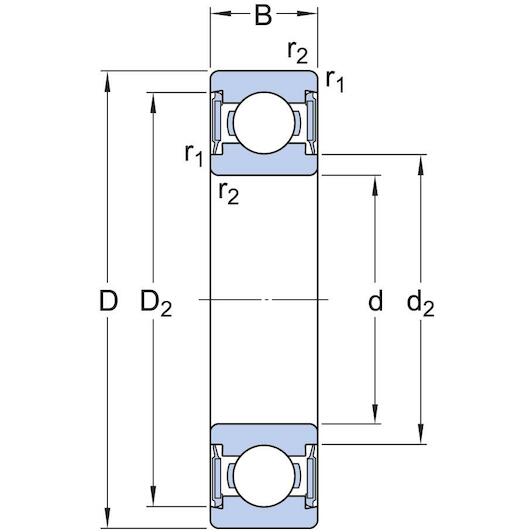

The SKF 6006-2RS1/C3 deep groove ball bearing has a 30 mm inside diameter, a 55 mm outside diameter, and a 13 mm width.

What does the C3 designation mean for this bearing?

C3 denotes greater radial internal clearance than standard, accommodating thermal expansion and higher speeds.

What protection does the 2RS1 seal offer?

The 2RS1 suffix means the bearing features contact rubber seals on both sides to keep out dust and moisture.

Is this SKF ball bearing maintenance-free?

Yes, it is pre-greased for life at the factory and sealed on both sides, requiring no relubrication.

What loads can this deep groove ball bearing handle?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

SKF 6006-2RS1/C3 single-row groove ball bearing cylindrical 30x55x13 mm

Supplier number: SKF 6006-2RS1/C3 | EAN 7316577314796

Recommended Retail Price €22.78

11.20 tax incl.

€9.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 13/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth operation with Skf bearing

Practical benefits

Effective dual contact seals: The rubber seals on both sides keep grease inside while protecting you against moisture and dust contamination in demanding environments.
Optimized for high speeds: Thanks to greater C3 internal clearance, you prevent thermal binding and ensure smooth rotation during high-temperature or fast applications.
Combined load handling capacity: The durable steel construction reliably supports both radial and axial forces across compact machinery requiring 30X55X13 mm dimensions.

In a nutshell

The right choise for

With the Skf 6006-2RS1/C3 deep groove ball bearing, you keep your rotating machinery running smoothly and reliably. Its dual 2RS1 rubber contact seals keep lubricant securely inside while providing effective protection against moisture and dust contamination. Thanks to the increased C3 radial clearance, the bearing compensates for thermal expansion to minimize friction at high operating speeds in electric motors, pumps, or conveyors. The durable steel construction with compact 30X55X13 mm dimensions reliably supports both radial and axial loads in both directions. Pre-greased at the factory, it offers a fully maintenance-free solution for your drive systems.

Product information FAQ

€11.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 13 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 55 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 13 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 55 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: C3
Basic static load rating: 8.3
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 8000
Bore diameter: 30
Basic dynamic load rating: 13.8
Outer diameter: 55

Brand SKF
01011201
EAN 7316577314796
Supplier number SKF 6006-2RS1/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The SKF 6006-2RS1/C3 deep groove ball bearing has a 30 mm inside diameter, a 55 mm outside diameter, and a 13 mm width.
What does the C3 designation mean for this bearing?: C3 denotes greater radial internal clearance than standard, accommodating thermal expansion and higher speeds.
What protection does the 2RS1 seal offer?: The 2RS1 suffix means the bearing features contact rubber seals on both sides to keep out dust and moisture.
Is this SKF ball bearing maintenance-free?: Yes, it is pre-greased for life at the factory and sealed on both sides, requiring no relubrication.
What loads can this deep groove ball bearing handle?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
