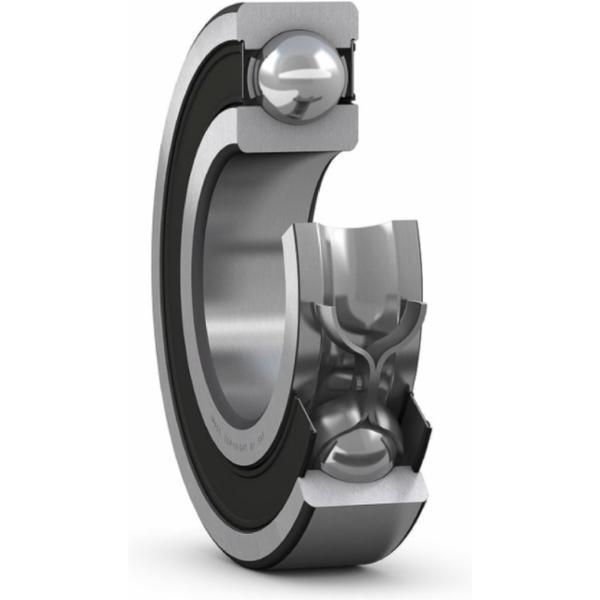

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 100 mm
Width: 24 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Radial clearance: C4
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 150 mm
Specifications / All features
Brand:
SKF
01013142
EAN:
7316570656534
Supplier number:
SKF 6020-2RS1/C4
Inner diameter
100 mm
Width
24 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Rubber
Radial clearance
C4
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
150 mm
Relubrication feature
Without
Radial internal clearance
C4
Basic static load rating
54 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
9,500 r/min
Skf performance class
SKF Explorer
Lubricant
Grease
Sealing type
Contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
63.7 kN
Locating feature, bearing outer ring
None
Sealing
Seal on both sides
Limiting speed
2,600 r/min
Bore diameter
100 mm
Coating
Without
Outside diameter
150 mm
