SKF

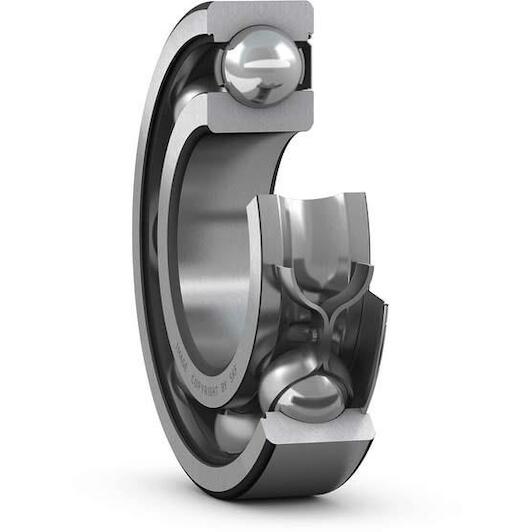

SKF 6020-Z single-row groove ball bearing cylindrical 100x150x24 mm

Recommended Retail Price €252.72
124.95 tax incl.
€103.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 24 mm
  • Number of rows: 1
  • Seal (bearing): Single-sided sealed
  • Material (bearing seal): Metal
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316576623080
  • Supplier number: SKF 6020-Z
Inner diameter
100 mm
Width
24 mm
Number of rows
1
Seal (bearing)
Single-sided sealed
Material (bearing seal)
Metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
150 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
54
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
9500
Skf performance class
SKF Explorer
Lubricant
None
Sealing type
Non-contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
63.7
Locating feature, bearing outer ring
None
Sealing
Shield on one side
Limiting speed
5600
Bore diameter
100
Coating
Without
Outside diameter
150
