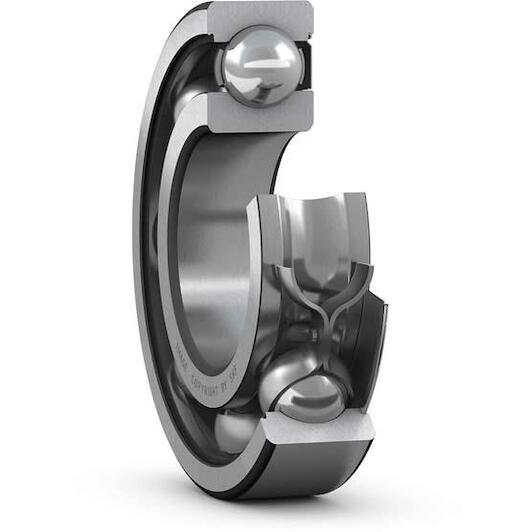

SKF 6022-Z single-row groove ball bearing cylindrical 110x170x28 mm

Supplier number: SKF 6022-Z | EAN 07316576621505
Recommended Retail Price €419.80
207.80 tax incl.
€171.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 31/10/2026

  • Ordered before 20:00 - delivered as of 31/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€207.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 110 mm
  • Width: 28 mm
  • Number of rows: 1
  • Sealing (bearing): Sealed on one side
  • Material (bearing seal): Metal
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 170 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Documents

All Features

Inner diameter
110 mm
Width
28 mm
Number of rows
1
Sealing (bearing)
Sealed on one side
Material (bearing seal)
Metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
170 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
73.5
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
8000
Skf performance class
SKF Explorer
Lubricant
None
Sealing type
Non-contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
85.2
Locating feature, bearing outer ring
None
Sealing
Shield on one side
Limiting speed
5000
Bore diameter
110
Coating
Without
Outer diameter
170
  • Brand SKF
  • EAN 07316576621505
  • Supplier number SKF 6022-Z
