What are the dimensions of this SKF 607-Z bearing?

The bearing has a 7 mm bore diameter, a 19 mm outer diameter, and a width of 6 mm.

What does the Z suffix in the model name mean?

The Z suffix indicates that the bearing has a pressed metal shield on one side.

What radial internal clearance does this bearing have?

This deep groove ball bearing features standard CN radial internal clearance.

Is this deep groove ball bearing suitable for high temperatures?

No, this standard bearing steel model is not designed for high-temperature applications.

What types of loads can this single-row bearing support?

It accommodates radial loads as well as axial loads in both directions.

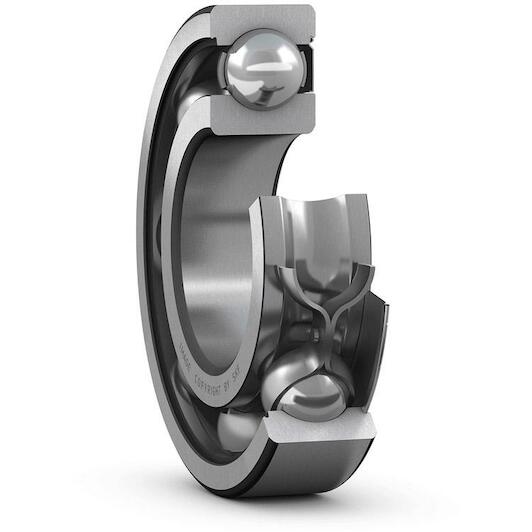

SKF 607-Z single-row groove ball bearing cylindrical 7x19x6 mm

Supplier number: SKF 607-Z | EAN 7316577662545

11.17 tax incl.

€9.23 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered as of 15/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf precision

Practical benefits

Low friction at speed: You achieve quiet operation and high rotational speeds thanks to optimized low-friction internal rolling elements.
Reliable single metal shield: The metallic shield retains essential lubricant while keeping unwanted dirt away from your moving components.
Dual direction load support: You reliably manage combined radial and axial loads in both directions with the robust single-row raceway.

In a nutshell

The right choise for

With the Skf 607-Z single-row deep groove ball bearing, you ensure smooth, quiet rotation in compact mechanical assemblies. Engineered from durable steel with dimensions of 7X19X6 mm, this bearing delivers low friction and minimal vibration, making it ideal for high rotational speeds in small electric motors, power tools, and robotics. The single metal shield effectively keeps lubricant inside while protecting internal rolling elements against dust and debris. Thanks to its deep raceway geometry, it reliably supports combined radial and axial loads in both directions. You restore optimal performance to your rotating equipment with dependable precision.

Product information FAQ

€11.17

In stock - tax incl.

Key features according to our expert

Inner diameter: 7 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 19 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 7 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 19 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 0.95
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 85000
Skf performance class: SKF Explorer
Lubricant: None
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 2.34
Locating feature, bearing outer ring: None
Sealing: Shield on one side
Limiting speed: 53000
Bore diameter: 7
Coating: Without
Outer diameter: 19

Brand SKF
01010005
EAN 7316577662545
Supplier number SKF 607-Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 607-Z bearing?: The bearing has a 7 mm bore diameter, a 19 mm outer diameter, and a width of 6 mm.
What does the Z suffix in the model name mean?: The Z suffix indicates that the bearing has a pressed metal shield on one side.
What radial internal clearance does this bearing have?: This deep groove ball bearing features standard CN radial internal clearance.
Is this deep groove ball bearing suitable for high temperatures?: No, this standard bearing steel model is not designed for high-temperature applications.
What types of loads can this single-row bearing support?: It accommodates radial loads as well as axial loads in both directions.
