SKF

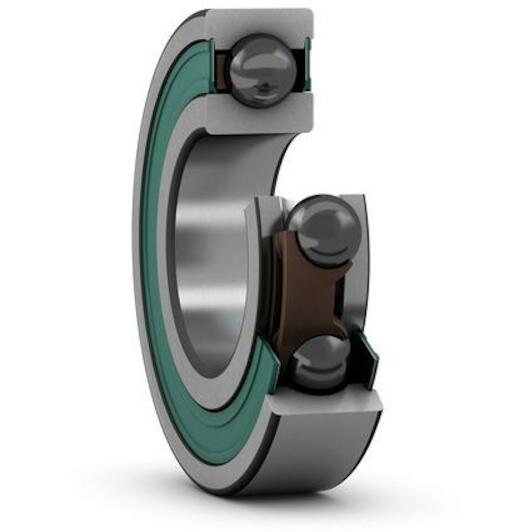

SKF 6209-2RZTN9/HC5C3WT Hybrid ceramic groove ball bearing with seal on both sides 45 mm

Recommended Retail Price €490.59
242.80 tax incl.
€200.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Hybrid ceramic single row deep groove ball bearings with seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

  • Protected against electric current damage
  • Integral sealing prolongs bearing service life
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 19 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Radial clearance: C3
  • Material (bearing): Hybrid ceramic
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571642352
  • Supplier number: SKF 6209-2RZTN9/HC5C3WT
Inner diameter
45 mm
Width
19 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Radial clearance
C3
Material (bearing)
Hybrid ceramic
Material (cage)
Plastic
Bore type
Cylindrical
High temperature
No
Outer diameter
85 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
21.6
Cage
Non-metallic
Relubrication feature
Without
Reference speed
20000
Lubricant
Grease
Sealing type
Non-contact
Locating feature, bearing outer ring
None
Material, bearing
Hybrid (ceramic balls)
Filling slots
Without
Basic dynamic load rating
33.2
Sealing
Seal on both sides
Limiting speed
11000
Bore diameter
45
Coating
Without
Outside diameter
85
