SKF

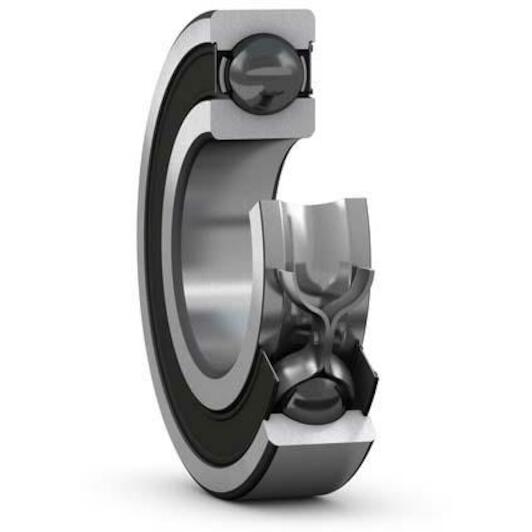

SKF 6214-2RS1/HC5C3WT hybrid ceramic groove ball bearing with seal on both sides 70 mm

Recommended Retail Price €1,420.27
702.95 tax incl.
€580.95 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Hybrid ceramic single row deep groove ball bearings with seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

  • Protected against electric current damage
  • Integral sealing prolongs bearing service life
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 24 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Radial clearance: C3
  • Material (bearing): Hybrid ceramic
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 125 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571642376
  • Supplier number: SKF 6214-2RS1/HC5C3WT
Inner diameter
70 mm
Width
24 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Radial clearance
C3
Material (bearing)
Hybrid ceramic
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
125 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
45
Material, bearing
Hybrid (ceramic balls)
Relubrication feature
Without
Lubricant
Grease
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Seal on both sides
Limiting speed
3400
Bore diameter
70
Basic dynamic load rating
60.5
Outside diameter
125
