SKF

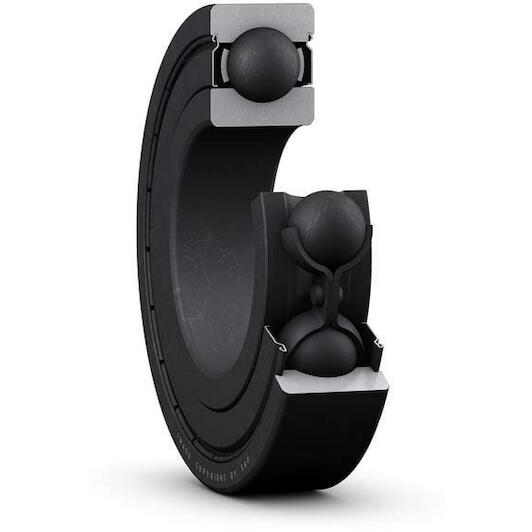

SKF 6308-2Z/VA201 high-temperature groove ball bearing with protective plates on both sides 40 mm

Recommended Retail Price €265.04
131.20 tax incl.
€108.43 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row deep groove ball bearings for high temperature applications, with shields on both sides, are designed for challenging operating conditions, with certain variants being capable of performing at temperatures as high as 350 °C (660 °F). They have larger radial internal clearances and use graphite-based lubricants that enable operation at high temperatures. They are lubricated for the life of the bearing and the entire surface of the bearings and shields are manganese phosphate treated, which enhances adhesion of the lubricant to the metal and improves their running-in properties. As with deep groove ball bearings generally, they are particularly versatile, accommodate radial and axial loads in both directions, and are easy to mount.

  • Optimized for operation at high temperatures - up to 350 °C (660 °F)
  • Easily swapped with grease-lubricated bearings of corresponding ISO dimensions
  • Increased reliability, reduced complexity and decreased environmental impact
  • Integral sealing prolongs bearing service life
  • Typical benefits of single row deep groove ball bearings
Key features according to our expert
  • Inner diameter: 40 mm
  • Width: 23 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Radial clearance: >C5
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: Yes
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570338140
  • Supplier number: SKF 6308-2Z/VA201
Inner diameter
40 mm
Width
23 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Radial clearance
>C5
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
Yes
Outer diameter
90 mm
Relubrication feature
Without
Radial internal clearance
Multiples of C5
Basic static load rating
24
Matched arrangement
No
Lubricant
Solid lubricant
Sealing type
Non-contact
Cage
Sheet metal
Material, bearing
High temperature steel
Filling slots
Without
Tolerance class
Normal
Coating
Coated
Locating feature, bearing outer ring
None
Sealing
Shield on both sides
Limiting speed
70
Bore diameter
40
Outside diameter
90
Maximum operating temperature
250
