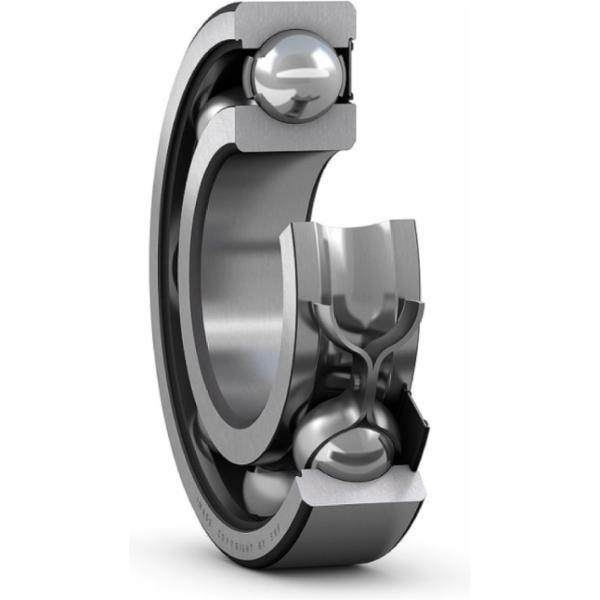

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Seal (bearing): Single-sided sealed
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 90 mm
Specifications / All features
Brand:
SKF
01012133
EAN:
7316571370835
Supplier number:
SKF 6308-RS1/C3

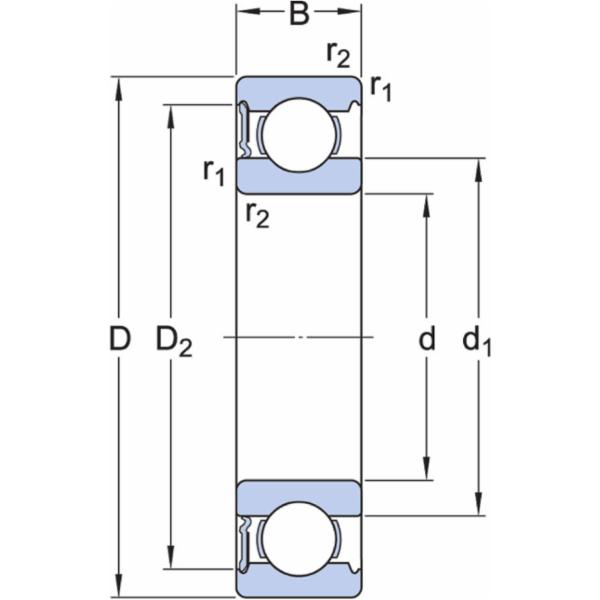

Inner diameter
40 mm
Width
23 mm
Number of rows
1
Seal (bearing)
Single-sided sealed
Material (bearing seal)
Rubber
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
90 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
24 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
17,000 r/min
Skf performance class
SKF Explorer
Lubricant
None
Sealing type
Contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Class P6 (P6)
Basic dynamic load rating
42.3 kN
Locating feature, bearing outer ring
None
Sealing
Seal on one side
Limiting speed
11,000 r/min
Bore diameter
40 mm
Coating
Without
Outside diameter
90 mm
