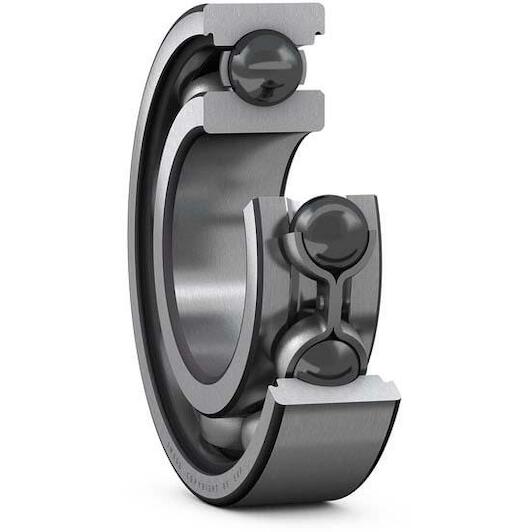

SKF 6310/HC5C3 Hybrid ceramic groove ball bearing without seal 50 mm

SKF
Supplier number: SKF 6310/HC5C3 | EAN 07316571209609
Recommended Retail Price €1,037.76
513.60 tax incl.
€424.46 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/10/2026

  • Ordered before 20:00 - delivered as of 28/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€513.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 50 mm
  • Width: 27 mm
  • Number of rows: 1
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (bearing): Hybrid ceramic
  • Material (cage): Sheet steel
  • Bore type: Cylindrical
  • High temperature: Yes
  • Outer diameter: 110 mm

Product description

Hybrid ceramic single row deep groove ball bearings have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. Deep groove ball bearings are the most widely used bearing type, especially in electric motors. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients. These characteristics make them suitable for use in difficult conditions and contaminated environments.

  • Protected against electric current damage
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings

All Features

Inner diameter
50 mm
Width
27 mm
Number of rows
1
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (bearing)
Hybrid ceramic
Material (cage)
Sheet steel
Bore type
Cylindrical
High temperature
Yes
Outer diameter
110 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
38
Material, bearing
Hybrid (ceramic balls)
Relubrication feature
Without
Reference speed
16000
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
10000
Bore diameter
50
Basic dynamic load rating
61.8
Outer diameter
110
  • Brand SKF
  • EAN 07316571209609
  • Supplier number SKF 6310/HC5C3
