SKF

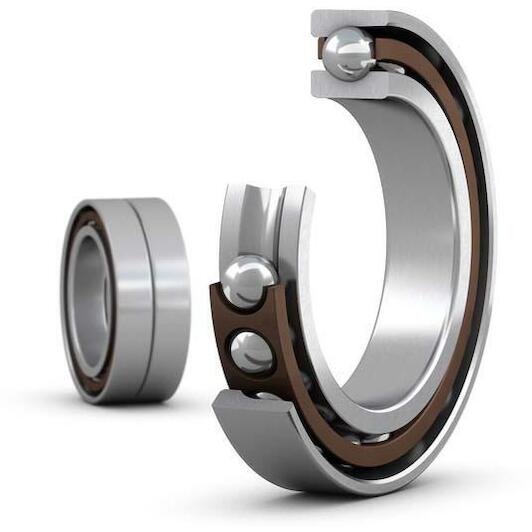

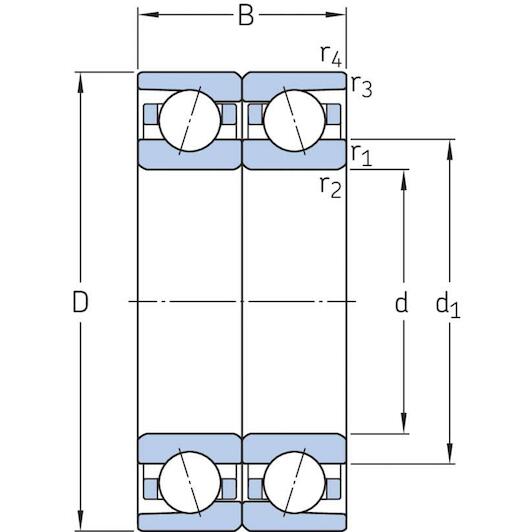

SKF 7003 CD/P4ADBA Single-row angular contact ball bearing set D-design high load capacity pairable 17 mm 2-piece

Recommended Retail Price €840.96
416.20 tax incl.
€343.97 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

  • Very high running accuracy
  • Very high load carrying capacity
Key features according to our expert
  • Inner diameter: 17 mm
  • Width: 20 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Outer diameter: 35 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570318586
  • Supplier number: SKF 7003 CD/P4ADBA
Inner diameter
17 mm
Width
20 mm
Number of rows
2
Seal (bearing)
Without seal
Outer diameter
35 mm
Basic static load rating
6.55
Number of bearings in matched set
2
Tolerance class
P4A
Contact type
Normal contact (two-point contact)
Design
High-capacity D
Matched arrangement
Back-to-back <>
Lubricant
None
Sealing
Without
Cage
Non-metallic
Material, bearing
Bearing steel
Universal matching bearing
No
Ring type
One-piece inner and outer rings
Bore diameter
17
Contact angle
15
Matched condition (axial clearance/ preload)
Extra light preload
Basic dynamic load rating
11.1
Coating
Without
Outside diameter
35
Note
Refer to catalogue data or contact SKF for the attainable speeds
