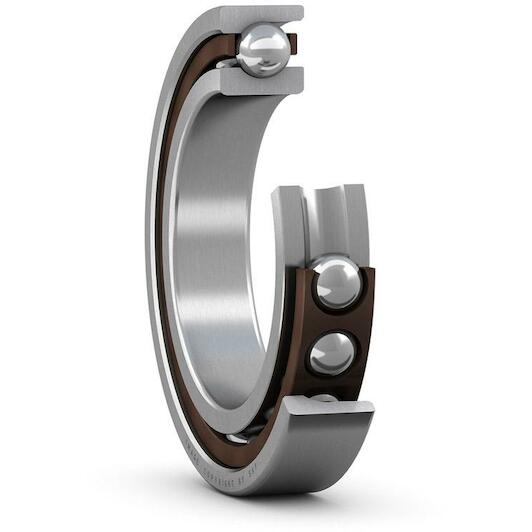

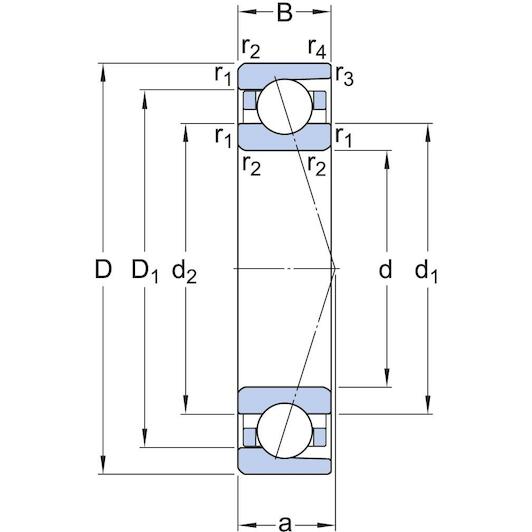

SKF 7008 ACD/P4ADGA single-row super-precision angular contact ball bearing 40 x 68 x 30 mm with contact angle 25°

Recommended Retail Price €1,136.61

562.60 tax incl.

€464.96 excl. VAT (incl. all environmental contributions)

SKF 7008 ACD/P4ADGA single-row super-precision angular contact ball bearing 40 x 68 x 30 mm with contact angle 25°

€562.60 Recommended Retail Price €1,136.61

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information
Additional info

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 40 mm
Width: 30 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 68 mm

Specifications / All features

Brand: SKF
01051263
EAN: 07316577087577
Supplier number: SKF 7008 ACD/P4ADGA

Inner diameter: 40 mm
Width: 30 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 68 mm
Basic static load rating: 20.8
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Design: High-capacity D
Matched arrangement: Universal matching
Lubricant: None
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel

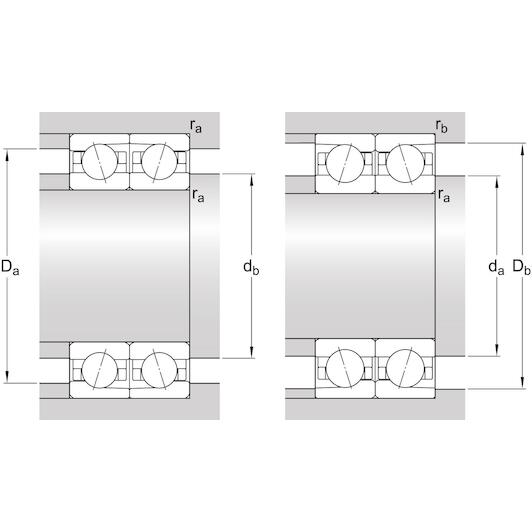

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Bore diameter: 40
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Basic dynamic load rating: 26
Coating: Without
Outside diameter: 68
Note: Refer to catalogue data or contact SKF for the attainable speeds
