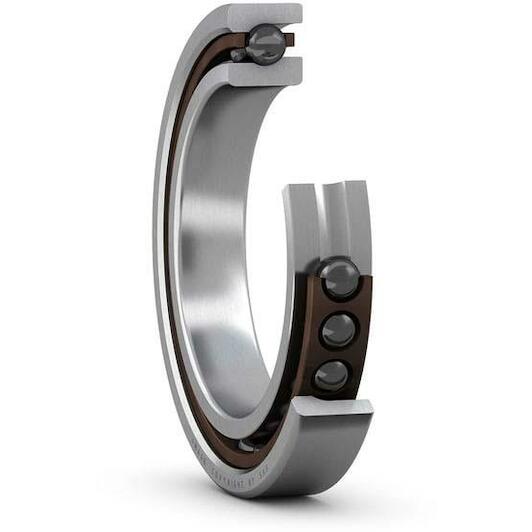

SKF 7014 ACEGA/HCP4A Single-row angular contact ball bearing high speed E-design universally combinable 70 mm

Recommended Retail Price €2,030.45

1,005.20 tax incl.

€830.74 excl. VAT (incl. all environmental contributions)

SKF 7014 ACEGA/HCP4A Single-row angular contact ball bearing high speed E-design universally combinable 70 mm

€1,005.20 Recommended Retail Price €2,030.45

On order: delivered from 23/05/2026

each

Ordered before 20:00 - delivered as of 23/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Accommodate very high speeds
Universally matchable

Key features according to our expert

Inner diameter: 70 mm
Width: 20 mm
Number of rows: 1
Seal (bearing): Without seal
Outer diameter: 110 mm

Specifications / All features

Brand: SKF
08106139
EAN: 7316571590035
Supplier number: SKF 7014 ACEGA/HCP4A

Inner diameter: 70 mm
Width: 20 mm
Number of rows: 1
Seal (bearing): Without seal
Outer diameter: 110 mm
Sealing: Without
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Hybrid (ceramic balls)
Cage: Non-metallic
Design: High-speed E
Lubricant: None
Matched arrangement: No
Basic static load rating: 17.3
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Ring type: One-piece inner and outer rings
Bore diameter: 70
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class A
Basic dynamic load rating: 22.5
Coating: Without
Outside diameter: 110
Note: Refer to catalogue data or contact SKF for the attainable speeds
