skf_7014cehcp4aqbca
SKF

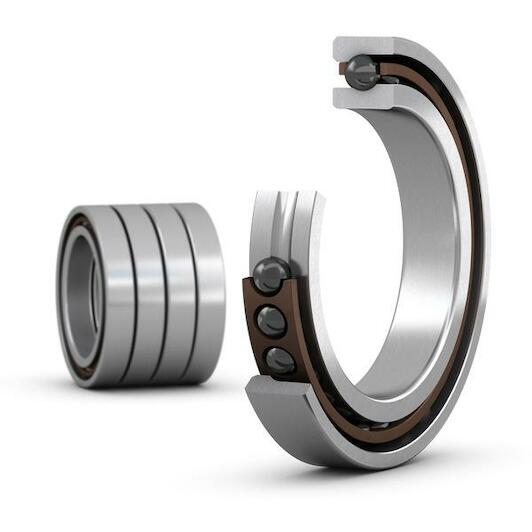

SKF 7014 CE/HCP4AQBCA Single-row angular contact ball bearing set high speed E-design, matched 70 mm 4-piece

Recommended Retail Price €8,324.84
4,121.60 tax incl.
€3,406.28 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These sets of four matched super-precision angular contact ball bearings are available as universally matchable bearings or in preconfigured arrangements. Sets of four bearings arranged in tandem need to be mounted against a single bearing, or a set of bearings in tandem, to achieve the desired preload. All the other arrangements are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

  • Very high running accuracy
  • High axial and radial stiffness
  • High axial and radial load carrying capacity
Key features according to our expert
  • Seal (bearing): Without seal
Specifications / All features
  • Brand: SKF
  • EAN: 7316570368895
  • Supplier number: SKF 7014 CE/HCP4AQBCA
Seal (bearing)
Without seal
Sealing
Without
Universal matching bearing
No
Material, bearing
Hybrid (ceramic balls)
Cage
Non-metallic
Design
High-speed E
Lubricant
None
Matched arrangement
<<>>
Basic static load rating
73.5
Contact type
Normal contact (two-point contact)
Tolerance class
P4A
Number of bearings in matched set
4
Ring type
One-piece inner and outer rings
Contact angle
15
Matched condition (axial clearance/ preload)
Extra light preload
Bore diameter
70
Number of rows
4
Basic dynamic load rating
62.4
Coating
Without
Width
80
Outside diameter
110
Note
Refer to catalogue data or contact SKF for the attainable speeds
