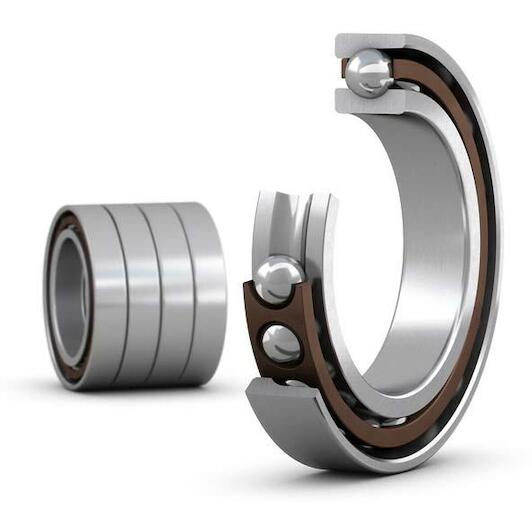

SKF 7016 ACD/P4AQGA Single-row angular contact ball bearing set high capacity D-design, matched 80 mm 4-piece

Recommended Retail Price €5,487.28

2,716.60 tax incl.

€2,245.12 excl. VAT (incl. all environmental contributions)

SKF 7016 ACD/P4AQGA Single-row angular contact ball bearing set high capacity D-design, matched 80 mm 4-piece

€2,716.60 Recommended Retail Price €5,487.28

On order: delivered from 13/07/2026

each

Ordered before 20:00 - delivered as of 13/07/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

These sets of four matched super-precision angular contact ball bearings are available as universally matchable bearings or in preconfigured arrangements. Sets of four bearings arranged in tandem need to be mounted against a single bearing, or a set of bearings in tandem, to achieve the desired preload. All the other arrangements are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

Very high running accuracy
High axial and radial stiffness
High axial and radial load carrying capacity

Key features according to our expert

Inner diameter: 80 mm
Width: 88 mm
Number of rows: 4
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 125 mm

Specifications / All features

Brand: SKF
08123936
EAN: 07316574312788
Supplier number: SKF 7016 ACD/P4AQGA

Inner diameter: 80 mm
Width: 88 mm
Number of rows: 4
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 125 mm
Basic static load rating: 232
Number of bearings in matched set: 4
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 80
Basic dynamic load rating: 165
Coating: Without
Outside diameter: 125
Note: Refer to catalogue data or contact SKF for the attainable speeds
