SKF 7018 ACEGA/P4A Single-row angular contact ball bearing high-speed E-design universally combinable

Recommended Retail Price €1,607.26

795.60 tax incl.

€657.52 excl. VAT (incl. all environmental contributions)

SKF 7018 ACEGA/P4A Single-row angular contact ball bearing high-speed E-design universally combinable

€795.60 Recommended Retail Price €1,607.26

On order: delivered from 23/05/2026

each

Ordered before 20:00 - delivered as of 23/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

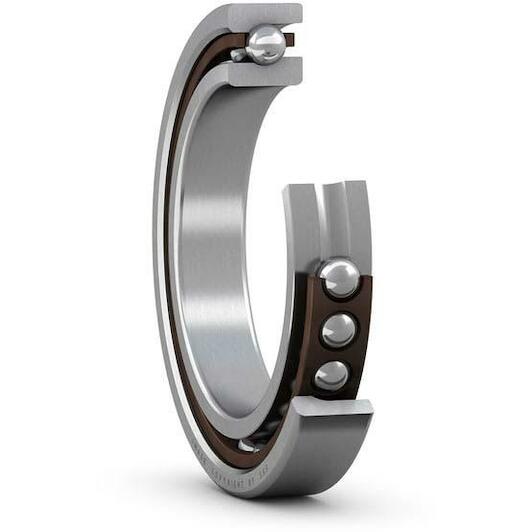

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Accommodate very high speeds
Universally matchable

Key features according to our expert

Inner diameter: 90 mm
Width: 24 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 140 mm

Specifications / All features

Brand: SKF
08126933
EAN: 07316572212578
Supplier number: SKF 7018 ACEGA/P4A

Inner diameter: 90 mm
Width: 24 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 140 mm
Matched arrangement: No
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 30
Material, bearing: Bearing steel
Lubricant: None
Design: High-speed E
Cage: Non-metallic
Sealing: Without

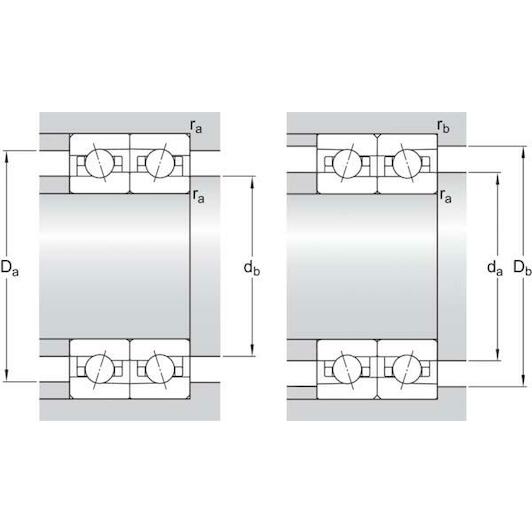

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Basic dynamic load rating: 33.8
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 90
Coating: Without
Outside diameter: 140
Note: Refer to catalogue data or contact SKF for the attainable speeds
