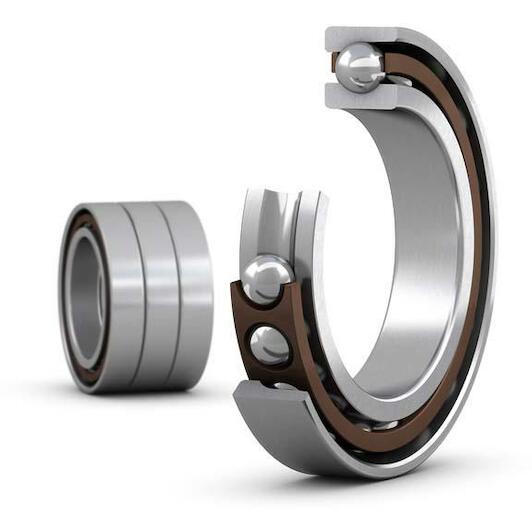

SKF 7020 ACD/P4ATGB Single-row aligned angular contact ball bearing set high capacity D-design 100 mm 3-piece

Recommended Retail Price €6,126.16

3,032.95 tax incl.

€2,506.57 excl. VAT (incl. all environmental contributions)

SKF 7020 ACD/P4ATGB Single-row aligned angular contact ball bearing set high capacity D-design 100 mm 3-piece

€3,032.95 Recommended Retail Price €6,126.16

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

These sets of three matched super-precision angular contact ball bearings are available as universally matchable bearings or as preconfigured arrangements. Sets arranged in back-to-back and tandem, or face-to-face and tandem, are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. Sets of three bearings paired in tandem need to be mounted against a single bearing, or another set of bearings in tandem, to achieve the desired preload. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

Very high running accuracy
High axial and radial stiffness
High axial and radial load carrying capacity

Key features according to our expert

Inner diameter: 100 mm
Width: 72 mm
Number of rows: 3
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 150 mm

Specifications / All features

Brand: SKF
08123946
EAN: 07316575951955
Supplier number: SKF 7020 ACD/P4ATGB

Inner diameter: 100 mm
Width: 72 mm
Number of rows: 3
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 150 mm
Basic static load rating: 240
Number of bearings in matched set: 3
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 25
Matched condition (axial clearance/ preload): Light preload
Bore diameter: 100
Basic dynamic load rating: 172
Coating: Without
Outside diameter: 150
Note: Refer to catalogue data or contact SKF for the attainable speeds
