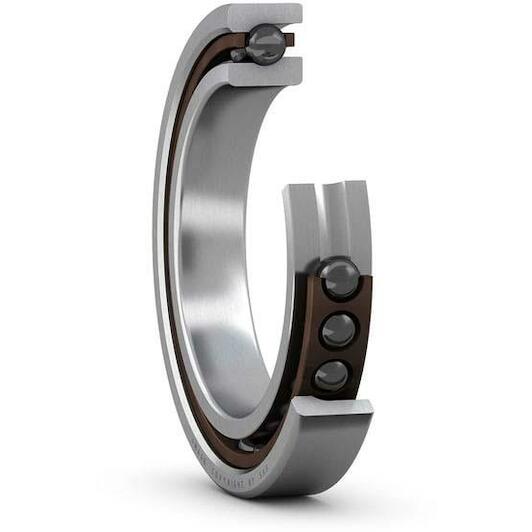

SKF 707 CEGA/HCP4A Single-row angular contact ball bearing high speed E-design universally combinable 7 mm

Supplier number: SKF 707 CEGA/HCP4A | EAN 7316575977405

Recommended Retail Price €694.35

343.60 tax incl.

€283.97 excl. VAT (incl. all environmental contributions)

On order: delivered from 28/10/2026

Ordered before 20:00 - delivered as of 28/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Product information

€343.60

tax incl.

Key features according to our expert

Inner diameter: 7 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Without seals
Outer diameter: 19 mm

Product description

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Accommodate very high speeds
Universally matchable

All Features

Inner diameter: 7 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Without seals
Outer diameter: 19 mm
Sealing: Without
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Hybrid (ceramic balls)
Cage: Non-metallic
Design: High-speed E
Lubricant: None
Matched arrangement: No
Basic static load rating: 0.64
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Ring type: One-piece inner and outer rings
Bore diameter: 7
Contact angle: 15
Matched condition (axial clearance/ preload): Measuring load, class A
Basic dynamic load rating: 1.95
Coating: Without
Outer diameter: 19
Note: Refer to catalogue data or contact SKF for the attainable speeds
