SKF 708 ACD/HCP4ADGC Single-row angular contact ball bearing set D-design high load capacity pairable 8 mm 2-piece

Recommended Retail Price €1,263.14

625.20 tax incl.

€516.69 excl. VAT (incl. all environmental contributions)

SKF 708 ACD/HCP4ADGC Single-row angular contact ball bearing set D-design high load capacity pairable 8 mm 2-piece

€625.20 Recommended Retail Price €1,263.14

On order: delivered from 23/05/2026

each

Ordered before 20:00 - delivered as of 23/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

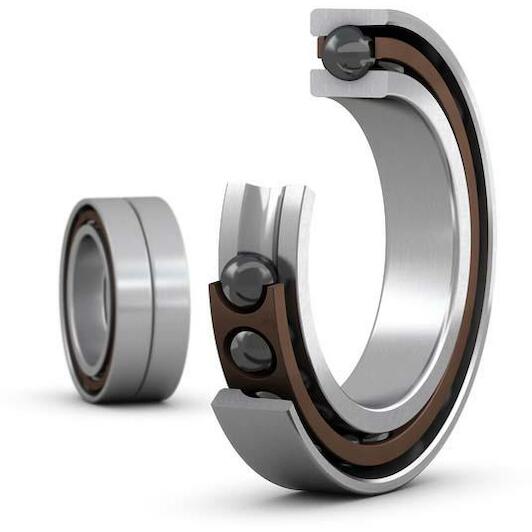

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 8 mm
Width: 14 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 22 mm

Specifications / All features

Brand: SKF
08124452
EAN: 07316580030508
Supplier number: SKF 708 ACD/HCP4ADGC

Inner diameter: 8 mm
Width: 14 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 22 mm
Basic static load rating: 2.65
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 25
Matched condition (axial clearance/ preload): Moderate preload
Bore diameter: 8
Basic dynamic load rating: 5.2
Coating: Without
Outside diameter: 22
Note: Refer to catalogue data or contact SKF for the attainable speeds
