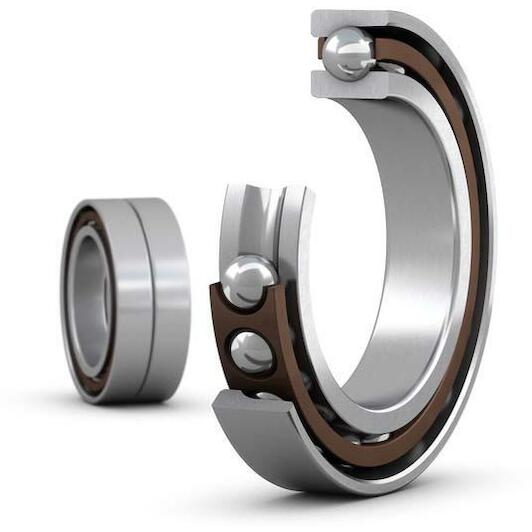

SKF 71900 ACD/P4ADGB Single-row angular contact ball bearing set D-design high load capacity pairable 10 mm 2-piece

Recommended Retail Price €938.71

464.60 tax incl.

€383.97 excl. VAT (incl. all environmental contributions)

SKF 71900 ACD/P4ADGB Single-row angular contact ball bearing set D-design high load capacity pairable 10 mm 2-piece

€464.60 Recommended Retail Price €938.71

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Specifications / All features

Brand: SKF
02656853
EAN: 07316577308955
Supplier number: SKF 71900 ACD/P4ADGB

Ring type: One-piece inner and outer rings
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Design: High-capacity D
Lubricant: None
Matched arrangement: Universal matching
Basic static load rating: 2.12
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Number of bearings in matched set: 2
Sealing: Without
Contact angle: 25
Matched condition (axial clearance/ preload): Light preload
Bore diameter: 10
Number of rows: 2
Basic dynamic load rating: 3.9
Coating: Without
Width: 12
Outside diameter: 22
Note: Refer to catalogue data or contact SKF for the attainable speeds
