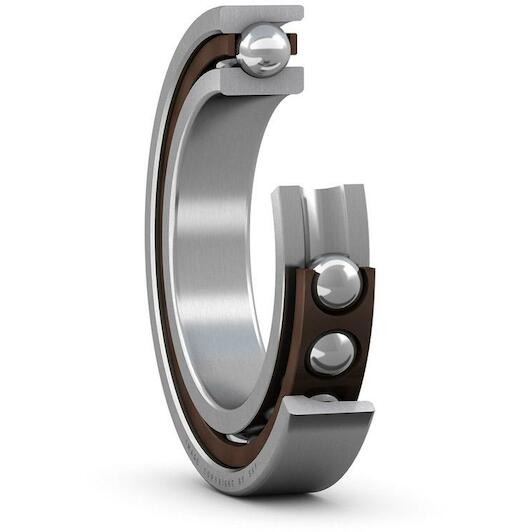

SKF 71913 CDGA/P4A single-row super-precision angular contact ball bearing 65 x 90 x 13 mm with contact angle 15°

Recommended Retail Price €913.02

451.95 tax incl.

€373.51 excl. VAT (incl. all environmental contributions)

SKF 71913 CDGA/P4A single-row super-precision angular contact ball bearing 65 x 90 x 13 mm with contact angle 15°

€451.95 Recommended Retail Price €913.02

On order: delivered from 30/05/2026

each

Ordered before 20:00 - delivered as of 30/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information
Additional info

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

Key features according to our expert

Inner diameter: 65 mm
Width: 13 mm
Number of rows: 1
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 90 mm

Specifications / All features

Brand: SKF
01050628
EAN: 7316577088239
Supplier number: SKF 71913 CDGA/P4A

Inner diameter: 65 mm
Width: 13 mm
Number of rows: 1
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 90 mm
Matched arrangement: No
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 17
Cage: Non-metallic
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Bearing steel

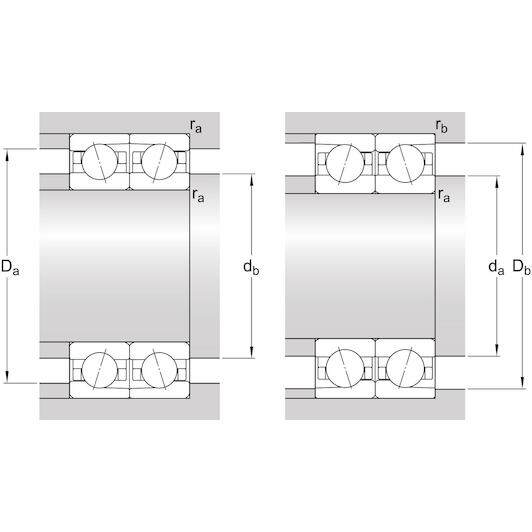

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 65
Basic dynamic load rating: 20.8
Coating: Without
Outside diameter: 90
Note: Refer to catalogue data or contact SKF for the attainable speeds
