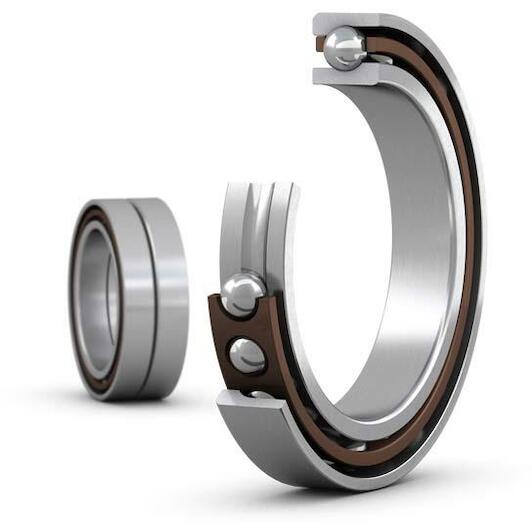

SKF 71917 CE/P4ADGA Single-row angular contact ball bearing set high speed E-design, matched 85 mm 2-piece

Recommended Retail Price €3,714.17

1,838.80 tax incl.

€1,519.67 excl. VAT (incl. all environmental contributions)

SKF 71917 CE/P4ADGA Single-row angular contact ball bearing set high speed E-design, matched 85 mm 2-piece

€1,838.80 Recommended Retail Price €3,714.17

On order: delivered from 23/05/2026

each

Ordered before 20:00 - delivered as of 23/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.

Very high running accuracy
Accommodate very high speeds

Key features according to our expert

Inner diameter: 85 mm
Width: 36 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 120 mm

Specifications / All features

Brand: SKF
08124140
EAN: 07316576009143
Supplier number: SKF 71917 CE/P4ADGA

Inner diameter: 85 mm
Width: 36 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 120 mm
Basic static load rating: 45.5
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-speed E
Sealing: Without
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 85
Basic dynamic load rating: 48.8
Coating: Without
Outside diameter: 120
Note: Refer to catalogue data or contact SKF for the attainable speeds
