What are the dimensions of this bearing?

The bearing has a 17 mm bore diameter, a 40 mm outer diameter, and a 12 mm width.

What types of loads can this angular contact ball bearing support?

It is designed to accommodate combined radial loads and unilateral axial loads acting in one direction.

What does the BEP suffix stand for in SKF bearings?

BE indicates an optimized internal design with a 40° contact angle, and P designates a glass fibre reinforced polyamide cage.

Is the SKF 7203 BEP bearing sealed?

No, this is an open bearing without integrated seals or shields.

Is this bearing suitable for high-speed operation?

Yes, its lightweight polymer cage minimizes friction, allowing limiting speeds up to 20 000 r/min.

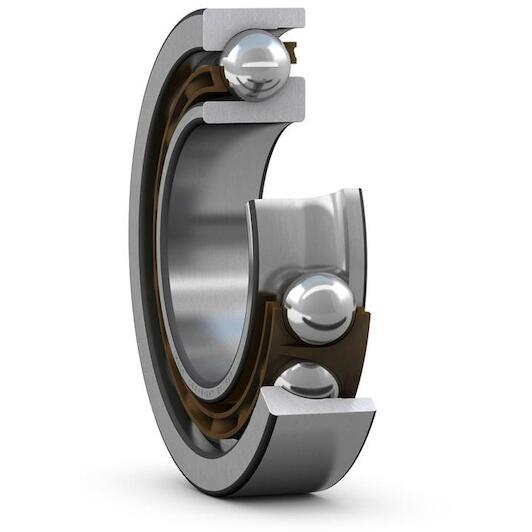

SKF 7203 BEP single-row angular contact ball bearing 17 x 40 x 12 mm with contact angle 40°

Supplier number: SKF 7203 BEP | EAN 7316576649714

Recommended Retail Price €59.81

29.60 tax incl.

€24.46 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable combined loads with Skf 7203 BEP

Practical benefits

Simultaneous radial and axial support: The 40° contact angle allows you to handle high radial and unilateral axial forces simultaneously in demanding machinery.
High speeds with reduced friction: The lightweight polyamide cage minimizes heat and friction so you achieve smooth operation at high rotational speeds.
Compact fit for tight housings: With exact 17 x 40 x 12 mm dimensions, you easily fit this bearing onto matching shafts and assemblies.

In a nutshell

The right choise for

With the Skf 7203 BEP, you equip your machinery with a single row angular contact ball bearing engineered to handle heavy radial forces and unilateral axial thrust simultaneously. Featuring a 40° contact angle and a lightweight glass fibre reinforced polyamide cage, it minimizes friction and operating noise while supporting speeds up to 20000 r/min. Its precise 17 x 40 x 12 mm dimensions and unsealed, open design ensure accurate shaft positioning and smooth integration in pumps, compressors, and high-demand rotating assemblies.

Product information FAQ

€29.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 17 mm
Width: 12 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 40 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 17 mm
Width: 12 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 40 mm
Basic static load rating: 5.5
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 22000
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 20000
Bore diameter: 17
Basic dynamic load rating: 10.4
Coating: Without
Outer diameter: 40
Universal matching bearing: No

Brand SKF
01050044
EAN 7316576649714
Supplier number SKF 7203 BEP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 17 mm bore diameter, a 40 mm outer diameter, and a 12 mm width.
What types of loads can this angular contact ball bearing support?: It is designed to accommodate combined radial loads and unilateral axial loads acting in one direction.
What does the BEP suffix stand for in SKF bearings?: BE indicates an optimized internal design with a 40° contact angle, and P designates a glass fibre reinforced polyamide cage.
Is the SKF 7203 BEP bearing sealed?: No, this is an open bearing without integrated seals or shields.
Is this bearing suitable for high-speed operation?: Yes, its lightweight polymer cage minimizes friction, allowing limiting speeds up to 20 000 r/min.
