SKF 7206 CD/P4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable 30 mm 2-piece

Recommended Retail Price €1,309.04

647.95 tax incl.

€535.50 excl. VAT (incl. all environmental contributions)

SKF 7206 CD/P4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable 30 mm 2-piece

€647.95 Recommended Retail Price €1,309.04

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

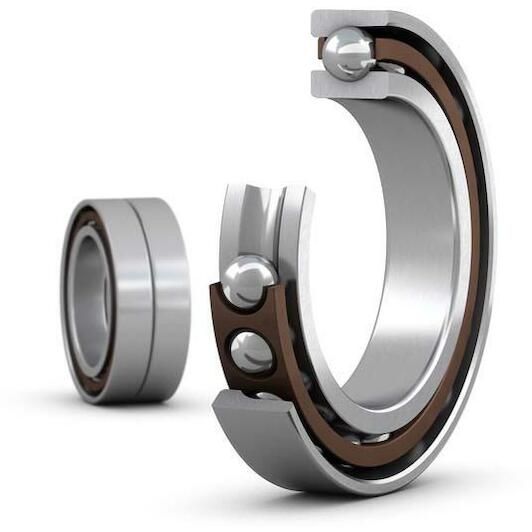

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 30
Width: 32
Outer diameter: 62

Specifications / All features

Brand: SKF
01946787
EAN: 07316576625664
Supplier number: SKF 7206 CD/P4ADGA

Inner diameter: 30
Width: 32
Outer diameter: 62
Sealing: Without

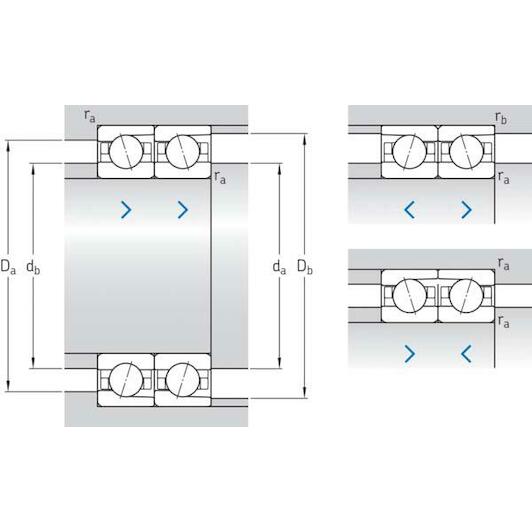

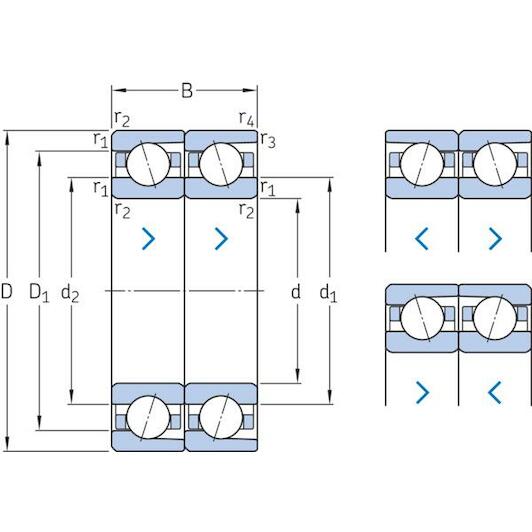

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Design: High-capacity D
Lubricant: None
Matched arrangement: Universal matching
Basic static load rating: 32
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Number of bearings in matched set: 2
Ring type: One-piece inner and outer rings
Matched condition (axial clearance/ preload): Extra light preload
Contact angle: 15
Bore diameter: 30
Number of rows: 2
Basic dynamic load rating: 39.7
Coating: Without
Outside diameter: 62
Note: Refer to catalogue data or contact SKF for the attainable speeds
