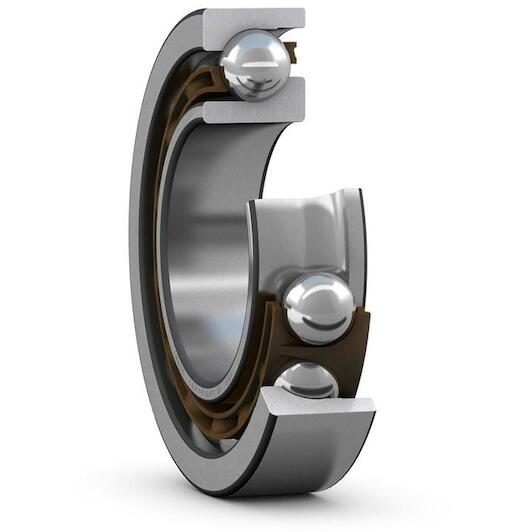

SKF 7208 BEP single-row angular contact ball bearing 40 x 80 x 18 mm with contact angle 40°

Supplier number: SKF 7208 BEP | EAN 7316576633003

Recommended Retail Price €117.12

57.80 tax incl.

€47.77 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with Skf

Practical benefits

High axial load capacity: Thanks to the 40° contact angle, you reliably support heavy unidirectional axial loads combined with radial forces.
Smooth high speed operation: The lightweight polyamide cage reduces internal friction so you achieve quiet, energy-efficient rotation at high speeds.

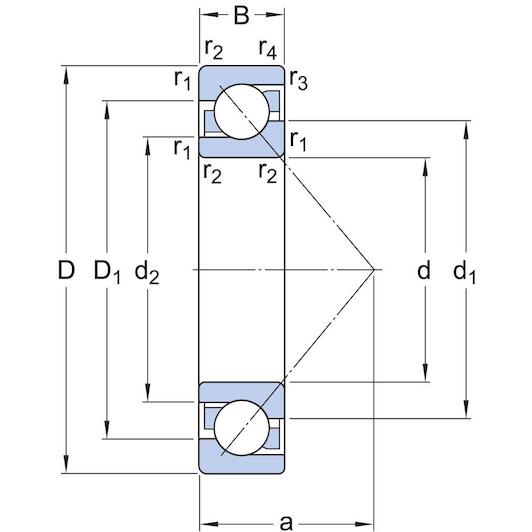

Accurate standard dimensions: With its 40 x 80 x 18 mm design, you fit this bearing directly into your precision machinery without modification.

In a nutshell

The right choise for

With the Skf 7208 bep single row angular contact ball bearing, you ensure dependable rigidity and smooth operation in demanding mechanical setups. Designed with a 40° contact angle, it reliably supports heavy radial loads combined with high unidirectional axial forces, making it ideal for pumps, gearboxes, and machine spindles. The lightweight glass fibre reinforced polyamide cage reduces friction and heat build-up, enabling quiet, energy-efficient performance at high speeds. Featuring standard dimensions of 40 x 80 x 18 mm and an open design, it integrates directly into your machinery with external lubrication for long-lasting reliability.

Product information FAQ

€57.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 18 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 80 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 18 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 80 mm
Basic static load rating: 24
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 10000
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 10000
Bore diameter: 40
Basic dynamic load rating: 34.5
Coating: Without
Outside diameter: 80
Universal matching bearing: No

Brand SKF
01050049
EAN 7316576633003
Supplier number SKF 7208 BEP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bore diameter is 40 mm, the outside diameter is 80 mm, and the width is 18 mm.
What types of loads can this single row bearing handle?: It accommodates combined radial loads and axial loads acting in one direction simultaneously.
What does the BEP designation stand for in this SKF bearing?: BE indicates a 40° contact angle with optimized internal design; P indicates a glass fibre reinforced polyamide cage.
Does the SKF 7208 BEP bearing have integrated seals?: No, this is an open bearing without seals and requires appropriate external lubrication.
What is the benefit of the 40° contact angle?: A 40° contact angle provides higher axial load-carrying capacity in one direction compared to standard deep groove ball bearings.
