What are the dimensions of this angular contact ball bearing?

The SKF 7228 BCBM has a 140 mm bore, a 250 mm outer diameter, and a width of 42 mm.

What type of loads can this bearing accommodate?

It is designed for combined radial and axial loads, supporting axial forces acting in one direction only.

What cage material is used in this bearing?

This bearing features a machined solid brass cage.

What is the contact angle of the SKF 7228 BCBM?

The bearing has a 40° contact angle.

Does this bearing come sealed?

No, this is an open bearing without built-in seals and requires appropriate external lubrication.

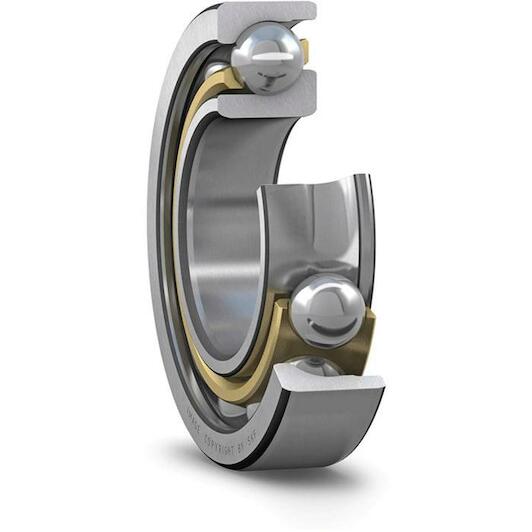

SKF 7228 BCBM single-row angular contact ball bearing 140 x 250 x 42 mm with contact angle 40°

Supplier number: SKF 7228 BCBM | EAN 7316576650321

Recommended Retail Price €3,052.85

1,511.40 tax incl.

€1,249.09 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable load management with Skf

Practical benefits

High combined load capacity: You accommodate simultaneous radial and unilateral axial forces effectively with the 40° contact angle design.
Machined solid brass cage: You gain excellent wear resistance and stable rolling element guidance in demanding operating environments.
High speed capability: You ensure smooth running and reduced friction for dependable performance across heavy industrial machinery.

In a nutshell

The right choise for

With the Skf 7228 bcbm single row angular contact ball bearing, you ensure dependable power transmission across heavy industrial machinery. Featuring a 40° contact angle, it accommodates heavy radial loads and single-direction axial forces simultaneously with ease. The machined solid brass cage delivers high wear resistance and stable rolling element guidance, preventing deformation during high-speed operation. With dimensions of 140 x 250 x 42 mm and an open, unsealed design, this bearing delivers smooth rotation and reduced friction in demanding pump systems, gearboxes, and rotating equipment.

Product information FAQ

€1,511.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 140 mm
Width: 42 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 250 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 140 mm
Width: 42 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 250 mm
Basic static load rating: 212
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 3200
Axial internal clearance: Not applicable
Cage: Machined brass
Material, bearing: Bearing steel
Sealing: Without
Bore diameter: 140
Contact angle: 40
Limiting speed: 3600
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 199
Coating: Without
Outer diameter: 250
Universal matching bearing: Yes

Brand SKF
01050205
EAN 7316576650321
Supplier number SKF 7228 BCBM

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The SKF 7228 BCBM has a 140 mm bore, a 250 mm outer diameter, and a width of 42 mm.
What type of loads can this bearing accommodate?: It is designed for combined radial and axial loads, supporting axial forces acting in one direction only.
What cage material is used in this bearing?: This bearing features a machined solid brass cage.
What is the contact angle of the SKF 7228 BCBM?: The bearing has a 40° contact angle.
Does this bearing come sealed?: No, this is an open bearing without built-in seals and requires appropriate external lubrication.
