SKF

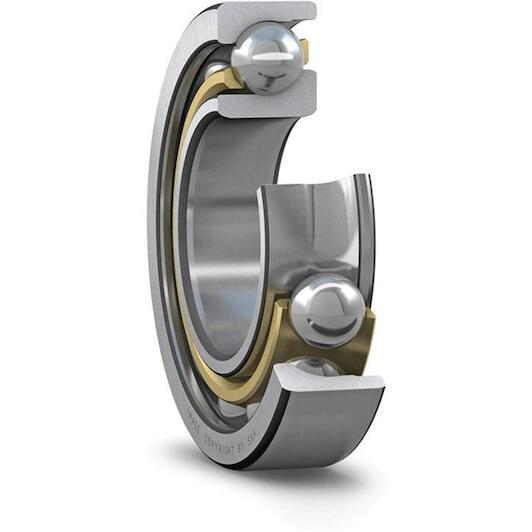

SKF 7240 BCBM single-row angular contact ball bearing 200 x 360 x 58 mm with contact angle 40°

Recommended Retail Price €9,325.37
4,616.95 tax incl.
€3,815.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 200 mm
  • Width: 58 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 360 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570694963
  • Supplier number: SKF 7240 BCBM
Inner diameter
200 mm
Width
58 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
360 mm
Basic static load rating
430
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
2200
Axial internal clearance
Not applicable
Cage
Machined brass
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
200
Contact angle
40
Limiting speed
2400
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
325
Coating
Without
Outside diameter
360
Universal matching bearing
Yes
