skf_7303bega_2rzp
SKF

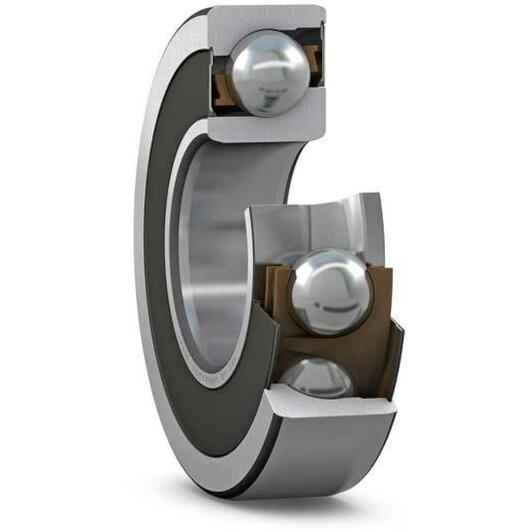

SKF 7303 BEGA-2RZP single-row angular contact ball bearing with 40° contact angle and non-slipping seal on both sides 17 mm

Recommended Retail Price €150.19
74.20 tax incl.
€61.32 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • 40° contact angle
  • Integral sealing prolongs bearing service life
  • Glass-fibre reinforced PA66 cage
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 17 mm
  • Width: 14 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Double-sided sealed
  • Outer diameter: 47 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576935077
  • Supplier number: SKF 7303 BEGA-2RZP
Inner diameter
17 mm
Width
14 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Double-sided sealed
Outer diameter
47 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
8.3
Lubricant
Grease
Relubrication feature
Without
Reference speed
20000
Sealing
Seal on both sides
Sealing type
Non-contact
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Matched condition (axial clearance/ preload)
Light preload
Contact angle
40
Limiting speed
15000
Bore diameter
17
Basic dynamic load rating
15.9
Coating
Without
Outside diameter
47
Universal matching bearing
Yes
