SKF

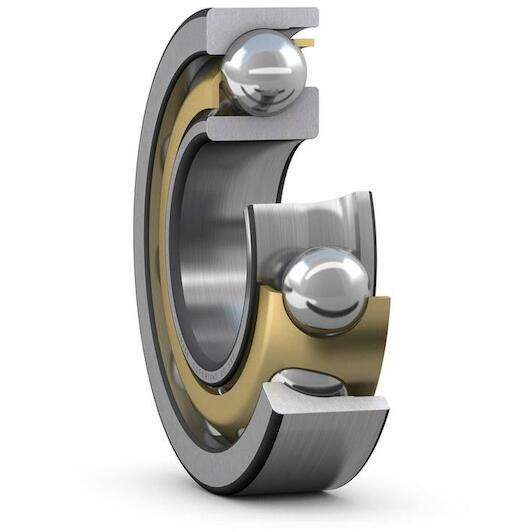

SKF 7305 BECBY single-row angular contact ball bearing 25 x 62 x 17 mm with contact angle 40°

Recommended Retail Price €179.43
88.80 tax incl.
€73.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 17 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576650482
  • Supplier number: SKF 7305 BECBY
Inner diameter
25 mm
Width
17 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
62 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
15.3
Lubricant
None
Relubrication feature
Without
Reference speed
14000
Skf performance class
SKF Explorer
Sealing
Without
Cage
Brass sheet metal
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
25
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
15000
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
26.5
Coating
Without
Outside diameter
62
Universal matching bearing
Yes
