What are the dimensions of this SKF angular contact ball bearing?

The bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.

What types of loads can this bearing accommodate?

It is designed for combined loads, handling radial loads and axial loads acting in one direction simultaneously.

What is the benefit of the 40° contact angle?

A 40° contact angle provides high axial load carrying capacity in one direction.

What material is the cage made of?

The cage of this bearing is made of plastic (polyamide).

Does this SKF bearing have integrated seals?

No, this is an open bearing without built-in seals.

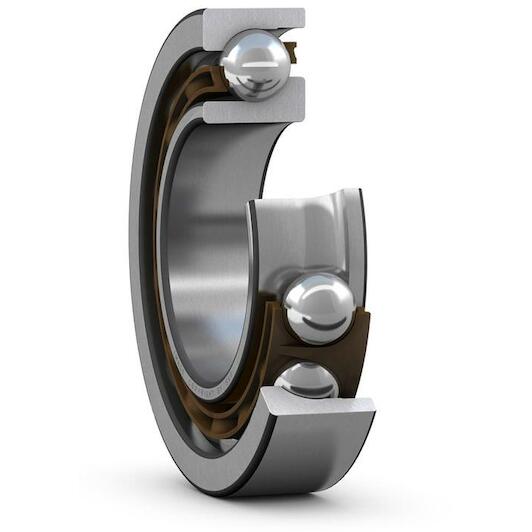

SKF 7307 BEP single-row angular contact ball bearing 35 x 80 x 21 mm with contact angle 40°

Supplier number: SKF 7307 BEP | EAN 7316577065872

Recommended Retail Price €118.42

58.60 tax incl.

€48.43 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered tomorrow 13/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable power transmission with 7307 BEP

Practical benefits

High combined load capacity: With a 40° contact angle, you reliably support heavy radial loads and high unilateral axial forces in demanding machinery.
Low friction polyamide cage: The lightweight polymer cage minimizes friction and heat buildup, helping you achieve smooth operation at high rotational speeds.
Accurate and easy integration: Standard dimensions of 35 x 80 x 21 mm allow you to fit the open bearing directly into gearboxes and pumps.

In a nutshell

The right choise for

With the Skf 7307 bep single-row angular contact ball bearing, you reliably support simultaneous radial loads and heavy unidirectional axial forces. Featuring a 40° contact angle, this bearing delivers exceptional stability and high axial load capacity in one direction, making it ideal for demanding operations in pumps, compressors, and gearboxes. The lightweight polyamide cage minimizes friction and vibration, ensuring smooth and quiet running at high rotational speeds. Thanks to its standardized dimensions of 35 x 80 x 21 mm, you can fit this open bearing accurately and directly into your rotating machinery for dependable power transmission.

Product information FAQ

€58.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 80 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 80 mm
Basic static load rating: 24.5
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 11000
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 10000
Bore diameter: 35
Basic dynamic load rating: 39
Coating: Without
Outer diameter: 80
Universal matching bearing: No

Brand SKF
01050070
EAN 7316577065872
Supplier number SKF 7307 BEP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.
What types of loads can this bearing accommodate?: It is designed for combined loads, handling radial loads and axial loads acting in one direction simultaneously.
What is the benefit of the 40° contact angle?: A 40° contact angle provides high axial load carrying capacity in one direction.
What material is the cage made of?: The cage of this bearing is made of plastic (polyamide).
Does this SKF bearing have integrated seals?: No, this is an open bearing without built-in seals.
