What loads can this angular contact ball bearing support?

It accommodates combined loads with simultaneous radial forces and axial forces in one direction.

What are the exact dimensions of this bearing?

The bore diameter is 40 mm, the outside diameter is 90 mm, and the width is 23 mm.

What type of sealing does this bearing have?

It features non-contact 2RZ seals made of rubber and metal on both sides.

What material is the cage made from?

The cage is made from glass-fibre reinforced polyamide (plastic).

What is the contact angle of this bearing?

This bearing has a 40° contact angle.

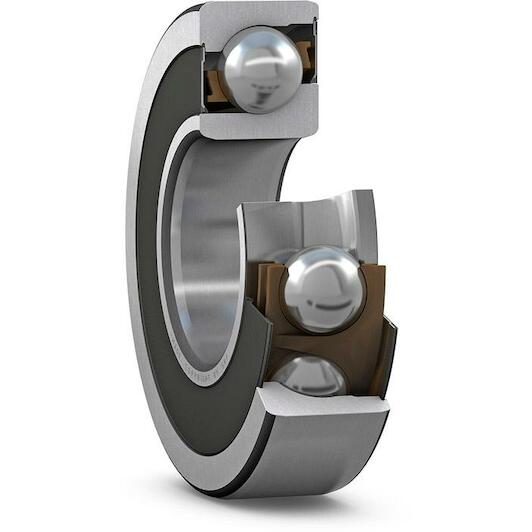

SKF 7308 BE-2RZP single-row angular contact ball bearing 40 x 90 x 23 mm with contact angle 40°

Supplier number: SKF 7308 BE-2RZP | EAN 7316575924478

Recommended Retail Price €201.56

99.60 tax incl.

€82.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered tomorrow 14/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Efficient load handling with Skf 7308 BE-2RZP

Practical benefits

High combined load capacity: The 40° contact angle enables you to support high radial loads and heavy unidirectional axial forces simultaneously.
Low friction non-contact seals: With 2RZ non-contact seals on both sides, you keep contaminants out while maintaining optimal rotational speeds.
Smooth and quiet operation: The glass-fibre reinforced cage provides precise ball guidance so you achieve lower vibration and quieter running performance.

In a nutshell

The right choise for

With the Skf 7308 BE-2RZP single row angular contact ball bearing, you handle combined radial loads and heavy unidirectional axial forces with confidence. Designed with a 40° contact angle, it delivers optimal performance in demanding applications such as pumps, gearboxes, compressors, and industrial electric motors. The non-contact 2RZ seals on both sides protect internal components from contamination and retain grease without increasing rotational friction or heat buildup. Combined with a lightweight, glass-fibre reinforced polymer cage, you achieve lower vibration, reduced inertia, and quiet operation at high speeds.

Product information FAQ

€99.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber/metal
Material (cage): Plastic
Outer diameter: 90 mm

Product description

These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

40° contact angle
Integral sealing prolongs bearing service life
Glass-fibre reinforced PA66 cage
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber/metal
Material (cage): Plastic
Outer diameter: 90 mm
Matched arrangement: No
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Basic static load rating: 30.5
Sealing type: Non-contact
Relubrication feature: Without
Reference speed: 9500
Lubricant: Grease
Locating feature, bearing outer ring: None
Cage: Non-metallic
Material, bearing: Bearing steel
Ring type: One-piece inner and outer rings
Sealing: Seal on both sides
Contact angle: 40
Limiting speed: 7500
Bore diameter: 40
Basic dynamic load rating: 46.2
Coating: Without
Outer diameter: 90
Universal matching bearing: No

Brand SKF
02777963
EAN 7316575924478
Supplier number SKF 7308 BE-2RZP

Frequently asked questions about this product

Answered by specialists

What loads can this angular contact ball bearing support?: It accommodates combined loads with simultaneous radial forces and axial forces in one direction.
What are the exact dimensions of this bearing?: The bore diameter is 40 mm, the outside diameter is 90 mm, and the width is 23 mm.
What type of sealing does this bearing have?: It features non-contact 2RZ seals made of rubber and metal on both sides.
What material is the cage made from?: The cage is made from glass-fibre reinforced polyamide (plastic).
What is the contact angle of this bearing?: This bearing has a 40° contact angle.
