What are the dimensions of this SKF 7308 BEP angular contact ball bearing?

The bearing has a 40 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.

What types of loads can this bearing accommodate?

This single row angular contact ball bearing accommodates combined loads: simultaneous radial loads and axial loads in one direction.

What is the benefit of the 40° contact angle?

The 40° contact angle provides a high axial load carrying capacity in one direction.

What material is the cage made from?

The cage is made from glass fibre reinforced polyamide (plastic).

Does this ball bearing have seals?

No, this is an open bearing without seals, designed for external lubrication.

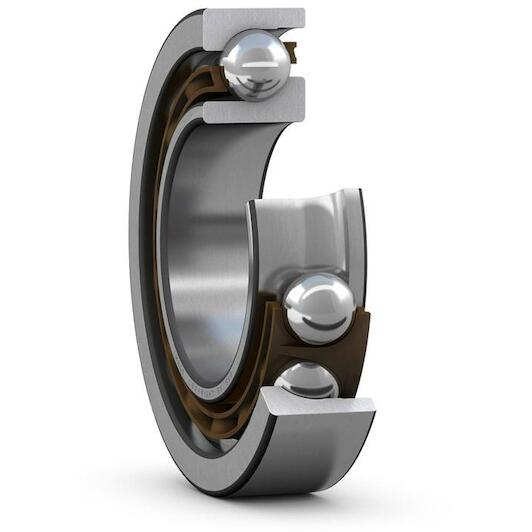

SKF 7308 BEP single-row angular contact ball bearing 40 x 90 x 23 mm with contact angle 40°

Supplier number: SKF 7308 BEP | EAN 7316576634130

Recommended Retail Price €152.05

75.20 tax incl.

€62.15 excl. VAT (incl. all environmental contributions)

On order: delivered from 16/10/2026

Ordered before 20:00 - delivered as of 16/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable load control with Skf

Practical benefits

High combined load capacity: You support high radial loads and heavy unilateral axial forces simultaneously thanks to the steep 40° contact angle.
Smooth high-speed operation: The lightweight polyamide cage minimizes internal friction, helping you maintain consistent performance at elevated rotational speeds.
Direct lubrication access: Featuring dimensions of 40 x 90 x 23 mm and an open design, you integrate this bearing smoothly into existing lubrication circuits.

In a nutshell

The right choise for

With the Skf 7308 bep single row angular contact ball bearing, you gain reliable stability and precision for demanding machinery such as pumps, compressors, and gearboxes. Thanks to its 40° contact angle, it easily accommodates simultaneous heavy radial loads and strong unidirectional axial thrust. The lightweight glass-fibre reinforced polyamide cage reduces friction and running noise, helping you maintain smooth high-speed rotation with minimal heat build-up. Featuring dimensions of 40 x 90 x 23 mm and an open design without seals, this bearing integrates smoothly into your external lubrication systems to deliver consistent, accurate shaft positioning.

Product information FAQ

€75.20

tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm
Basic static load rating: 30.5
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 9500
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 9000
Bore diameter: 40
Basic dynamic load rating: 46.2
Coating: Without
Outer diameter: 90
Universal matching bearing: No

Brand SKF
01050071
EAN 7316576634130
Supplier number SKF 7308 BEP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 7308 BEP angular contact ball bearing?: The bearing has a 40 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.
What types of loads can this bearing accommodate?: This single row angular contact ball bearing accommodates combined loads: simultaneous radial loads and axial loads in one direction.
What is the benefit of the 40° contact angle?: The 40° contact angle provides a high axial load carrying capacity in one direction.
What material is the cage made from?: The cage is made from glass fibre reinforced polyamide (plastic).
Does this ball bearing have seals?: No, this is an open bearing without seals, designed for external lubrication.
