What are the dimensions of this SKF 7309 BECBP ball bearing?

The bearing has a 45 mm bore diameter, a 100 mm outer diameter, and a width of 25 mm.

What types of loads can this angular contact bearing handle?

It accommodates combined radial and axial loads acting simultaneously in one direction.

What material is the cage made of?

The cage of this model is made of polymer (polyamide).

Does this bearing come with seals?

No, this is an open bearing without built-in seals.

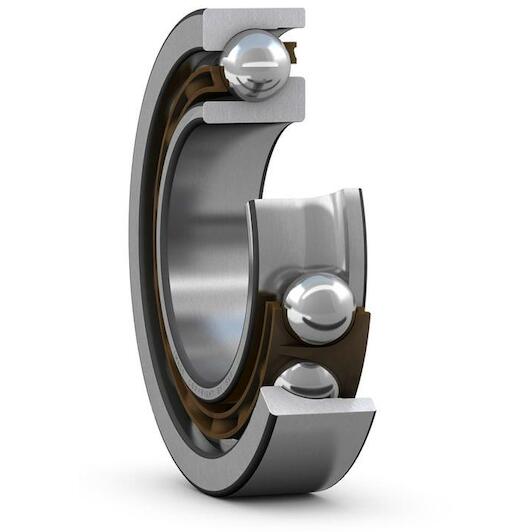

SKF 7309 BECBP single-row angular contact ball bearing 45 x 100 x 25 mm with contact angle 40°

Supplier number: SKF 7309 BECBP | EAN 7316576634161

Recommended Retail Price €251.37

124.40 tax incl.

€102.81 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable control under heavy loads

Practical benefits

High axial load support: A 40° contact angle ensures you can easily accommodate heavy unilateral axial and combined radial loads.
Smooth high-speed performance: The lightweight polymer cage minimizes internal friction, allowing you to run continuous operations at high rotational speeds.
Dependable Skf construction: The open single-row design gives you full freedom to apply your preferred lubricant for seamless industrial maintenance.

In a nutshell

The right choise for

With the Skf 7309 becbp single-row angular contact ball bearing, you easily handle combined radial and single-direction axial loads. Its 40° contact angle provides high axial load-carrying capacity, making it ideal for rotating shafts in pumps, compressors, gearboxes, and electric motors. The polymer cage minimizes internal friction, reducing noise and vibrations during high-speed rotational operations. Thanks to the open design without integrated seals, you can freely apply and tailor lubrication to match the precise requirements of your machinery. Measuring 45 x 100 x 25 mm, this bearing ensures precise shaft positioning and dependable operational reliability across your industrial equipment.

Product information FAQ

€124.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 25 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 100 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 25 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 100 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 40.5
Lubricant: None
Relubrication feature: Without
Reference speed: 8500
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 45
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 9000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 61
Coating: Without
Outer diameter: 100
Universal matching bearing: Yes

Brand SKF
01050206
EAN 7316576634161
Supplier number SKF 7309 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 7309 BECBP ball bearing?: The bearing has a 45 mm bore diameter, a 100 mm outer diameter, and a width of 25 mm.
What types of loads can this angular contact bearing handle?: It accommodates combined radial and axial loads acting simultaneously in one direction.
What is the purpose of the 40° contact angle?: The 40° contact angle provides high axial load-carrying capacity in one direction.
What material is the cage made of?: The cage of this model is made of polymer (polyamide).
Does this bearing come with seals?: No, this is an open bearing without built-in seals.
