SKF

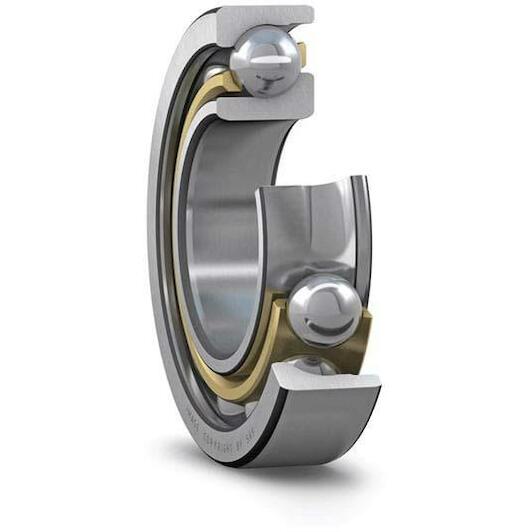

SKF 7309 BEGAM single-row angular contact ball bearing 45 mm

Recommended Retail Price €424.31
209.95 tax incl.
€173.51 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

Avantages

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 25 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (cage): Brass (solid)
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577610546
  • Supplier number: SKF 7309 BEGAM
Inner diameter
45 mm
Width
25 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (cage)
Brass (solid)
Outer diameter
100 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
40.5 kN
Skf performance class
SKF Explorer
Relubrication feature
Without
Reference speed
8,500 r/min
Sealing
Without
Lubricant
None
Cage
Machined brass
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Matched condition (axial clearance/ preload)
Light preload
Axial internal clearance
Not applicable
Contact angle
40 °
Limiting speed
9,000 r/min
Bore diameter
45 mm
Basic dynamic load rating
61 kN
Coating
Without
Outside diameter
100 mm
Universal matching bearing
Yes
